SP3086E

(SP3081E - SP3088E) Advanced Failsafe Transceiver

Sipex Corporation

SP3086E Features

* 5.0V single supply operation

* Receiver failsafe on open, shorted or terminated lines

* 1/8th Unit Load, 256 transceivers on bus

* Robust ESD protection for RS-485 pins o ±15kV Air-Gap Discharge o ±15kV Human Body Model o ±8kV Contact Discharge

* Controlled

SP3086E General Description

1 Devices are available in three industry standard architectures and footprints. In each footprint there are three speed grades available. DEVICE ARCHITECTURE AND BLOCK DIAGRAMS NC RO 1 2 R 3 RE DE 4 DI GND GND 5 6 7 D 14 VCC 13 NC 12 A 11 B 10 Z 14-Pin Full Duplex SP3080E, 115kbps slew rate.

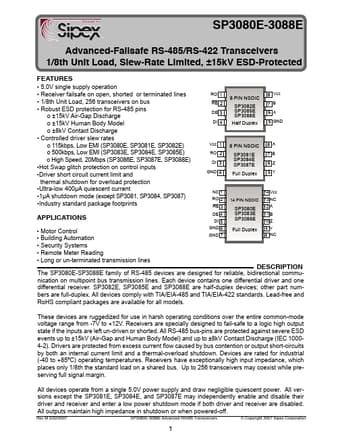

SP3086E Datasheet (774.59 KB)

SP3086E Datasheet Preview — Preview of SP3086E PDF

Datasheet Details

Part number:

SP3086E

Manufacturer:

Sipex Corporation

File Size:

774.59 KB

Description:

(sp3081e - sp3088e) advanced failsafe transceiver.
