AS1117 - 800mA Low Dropout Regulator

Datasheet Summary

Description

The AS1117 is a low power positive-voltage regulator designed to meet 800mA output current and comply with SCSI-II specifications with a fixed output voltage of 2.85V.

Features

Guaranteed 800mA Output.
Three Terminal Adjustable Or Fixed 1.5V, 2.5V, 3V, 3.3V & 5V.
Very Low Quiescent Current.
Low Dropout Voltage Of 1.2 Volts At Full Load.
Extremely Tight Load And Line Regulation.
Very Low Temperature Coefficient.
Logic-Controlled Electronic Shutdown.
Internal Overcurrent Limiting & Thermal Overload Protection.
Surface Mount Package SOT-223, TO-252, TO-220, SOT-89, TO-263, & SO-8.

Sipex

📥 Download Datasheet

Datasheet Details

Part number	AS1117
Manufacturer	Sipex
File Size	138.46 KB
Description	800mA Low Dropout Regulator
Datasheet	AS1117 Datasheet

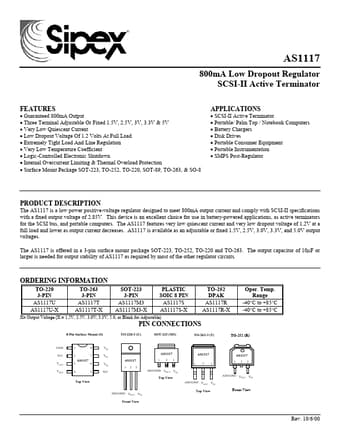

Additional preview pages of the AS1117 datasheet.

📁 Similar Datasheet

AS1117 - 64 LED Driver (austriamicrosystems)
AS111 - Voltage Comparator (Micross)
AS111 - Voltage Comparator (Austin Semiconductor)
AS1110 - 16-Channel LED Driver (austriamicrosystems AG)
AS1110 - 16-Channel LED Driver (ams)
AS1111 - Low-Dropout LED Drivers (ams)
AS1112 - 16-Channel LED Driver (austriamicrosystems AG)
AS1113 - 16-Channel LED Driver (austriamicrosystems AG)
AS1115 - Interfaced LED Driver (austriamicrosystems AG)
AS1116 - 64 LED Driver (austriamicrosystems AG)

Other Datasheets by Sipex

AS1582 - 3A Ultra Low Dropout Voltage Regulator

Full PDF Text Transcription

Click to expand full text

AS1117 800mA Low Dropout Regulator SCSI-II Active Terminator FEATURES • Guaranteed 800mA Output • Three Terminal Adjustable Or Fixed 1.5V, 2.5V, 3V, 3.3V & 5V • Very Low Quiescent Current • Low Dropout Voltage Of 1.
