AS1116 - 64 LED Driver

The AS1116 is a compact LED driver for 64 single LEDs or 8 digits of 7-segments.

The devices can be programmed via an SPI compatible 3-wire interface.

Every segment can be individually addressed and updated separately.

Only one external resistor (RSET) is required to set the current.

LED brightness

AS1116 Features

* a low shutdown current of typically 200nA, and an operational current of typically 350µA. The number of digits can be programmed, the devices can be reset by software, and an external clock is also supported. The device is available in a QSOP-24 and TQFN(4x4)24 package. 2 Key Features ! ! ! ! ! ! !

AS1116_austriamicrosystemsAG.pdf

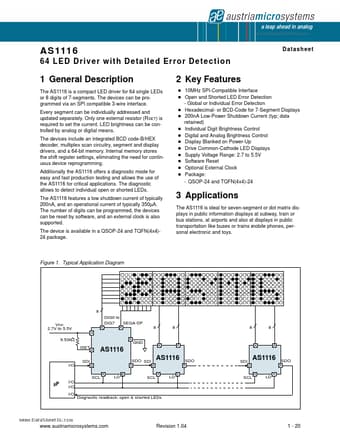

Preview of AS1116 PDF
