AS1101, (AS1101 - AS1104) Low-Dropout LED Drivers

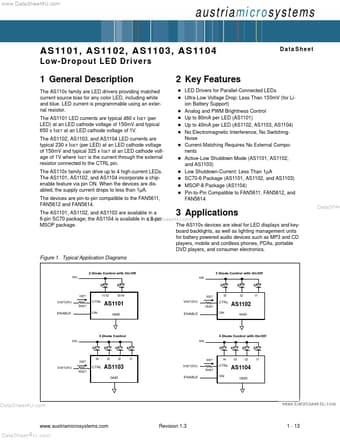

www.DataSheet4U.com austriamicrosystems Data Sheet A S 11 0 1 , A S 11 0 2 , A S 11 0 3 , A S 11 0 4 Low-Dropout LED Drivers 1 General .
The AS110x family are LED drivers providing matched current source bias for any color LED, including white and blue.

datasheet Preview Page 1 from Datasheet4u.com

AS1101_AMSCO.pdf

AS1101 Datasheet Preview — Preview of AS1101 PDF

Datasheet Details

Part number:

AS1101

Manufacturer:

AMSCO

File Size:

366.64 KB

Description:

(AS1101 - AS1104) Low-Dropout LED Drivers

Features

* ! ! ! ! ! ! ! ! ! ! ! ! LED Drivers for Parallel-Connected LEDs Ultra-Low Voltage Drop: Less Than 150mV (for Liion Battery Support) Analog and PWM Brightness Control Up to 80mA per LED (AS1101) Up to 40mA per LED (AS1102, AS1103, AS1104) No Electromagnetic Interference, No SwitchingNoise Current-Ma

Applications

* DataShee ISET VSET(3V) RSET ENABLE ON CTRL I1/I2 I3/I4 VSET(3V) ISET RSET ENABLE I3 CTRL ON I2 I1 AS1101 GND AS1102 GND 4 Diode Control VIN VIN 4 Diode Control with On/Off ISET VSET(3V) RSET I4 CTRL I3 I2 I1 VSET(3V) ISET RSET ENABLE I4 CTRL ON I3 I2 I1 AS1103 GND AS1104 GND
