AS1105

Serially Interfaced 4-Digit LED Driver

AS1105 Features

* - DATA SHEET Cost effective version of AS1100 functionality for applications up to 4-Digits 10MHz Serial Interface Individual LED Segment Control Decode/No-Decode Digit Selection 20µA Low-Power Shutdown (Data Retained) Extremely low Operating Current 0.5mA in open loop Digital and Analog Brightnes

AS1105 General Description

The AS1105 is an LED driver for 7 segment numeric displays of up to 4 digits. The AS1105 can be programmed via a conventional 4 wire serial interface. It includes a BCD DataSheet4U.com code-B decoder, a multiplex scan circuitry, segment and display drivers and a 32 Bit memory. The memory is used to.

AS1105 Datasheet (356.07 KB)

Preview of AS1105 PDF

Datasheet Details

Part number:

AS1105

Manufacturer:

AMSCO

File Size:

356.07 KB

Description:

Serially interfaced 4-digit led driver.

📁 Related Datasheet

AS1100 Serially Interfaced 8-Digit LED Driver (AMSCO)

AS1101 (AS1101 - AS1104) Low-Dropout LED Drivers (AMSCO)

AS1102 (AS1101 - AS1104) Low-Dropout LED Drivers (AMSCO)

AS1103 (AS1101 - AS1104) Low-Dropout LED Drivers (AMSCO)

AS1104 (AS1101 - AS1104) Low-Dropout LED Drivers (AMSCO)

AS1105 Serially interfaced 4-digit LED driver (ams)

AS1106 (AS1106 / AS1107) 8-Digit LED Display Drivers (AMSCO)

AS1107 (AS1106 / AS1107) 8-Digit LED Display Drivers (AMSCO)

AS1108 4-Digit LED Display Driver (AMSCO)

AS1109 Constant-Current 8-Bit LED Driver (AMSCO)

TAGS

AS1105 Serially Interfaced 4-Digit LED Driver AMSCO

Image Gallery

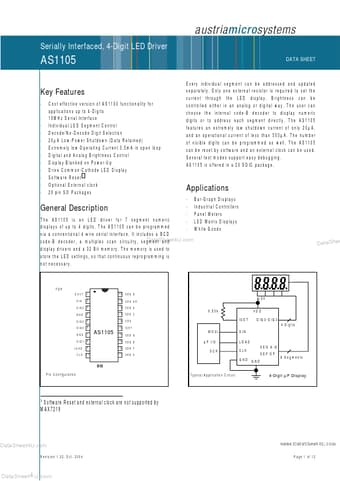

AS1105 Datasheet Preview Page 2 AS1105 Datasheet Preview Page 3
