SP3487 +3.3V Low Power Quad RS-485/RS-422 Line Drivers

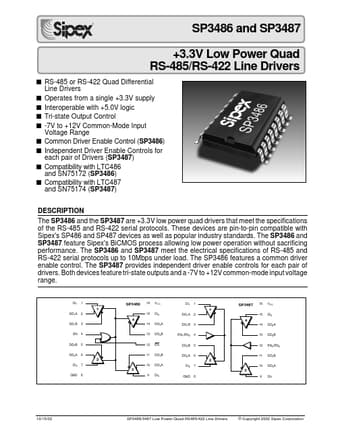

® SP3486 and SP3487 +3.3V Low Power Quad RS-485/RS-422 Line Drivers RS-485 or RS-422 Quad Differential Line Drivers Operates from a single +3.3V supply Interoperable with +5.0V logic Tri-state Output Control -7V to +12V Common-Mode Input Voltage Range Common Driver Enable Control (SP3486) Independent Driver Enable Controls for each pair of Drivers (SP3487) Compatibility with LTC486 and SN75172 (SP3486) Compatibility with LTC487 and SN75174 .

SP3487 Features

* a common driver enable control. The SP3487 provides independent driver enable controls for each pair of drivers. Both devices feature tri-state outputs and a -7V to +12V common-mode input voltage range. DI1 DO1A DO1B EN DO2B DO2A DI2 GND 1 SP3486 1 16 15 VCC DI4 DO4A DO4B EN DO3B DO3A DI3 DI1
