SP3485E

RS485/RS422 transceiver

SP3485E Features

* 3.3V power supply, half-duplex;

* 1/8 unit load allows up to 256 devices on the bus;

* Driver output short-circuit protection function;

* Over temperature protection function;

* Low power shutdown function;

* Receiver open circuit protection function;

* Strong anti-noi

SP3485E General Description

The SP3485E is a 3.3V powered, half-duplex, low-power RS-485 transceiver that fully meets the requirements of the TIA/EIA-485 standard. The SP3485E includes a driver and a receiver, both of which can be independently enabled and disabled. When both are disabled, both the driver and the receiver out.

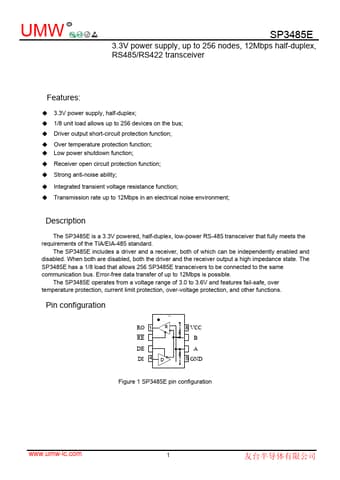

SP3485E Datasheet (1.42 MB)

Preview of SP3485E PDF

Datasheet Details

Part number:

SP3485E

Manufacturer:

UMW

File Size:

1.42 MB

Description:

Rs485/rs422 transceiver.
