SP3485

3.3V Low Power Half-Duplex RS-485 Transceiver

SP3485 Features

* RS-485 and RS-422 transceiver

* Operates from a single 3.3V supply

* Interoperable with 5.0V logic

* Driver/receiver enable

* -7V to +12V common-mode input voltage range

* Allows up to 32 transceivers on the serial bus

* Compatibility

SP3485 General Description

The SP3485 device is a 3.3V low power half-duplex transceiver that meets the specifications of the RS-485 and RS-422 serial protocols. This device is pin-to-pin compatible with the MaxLinear SP481, SP483 and SP485 devices as well as popular industry standards. The SP3485 can meet the electrical spec.

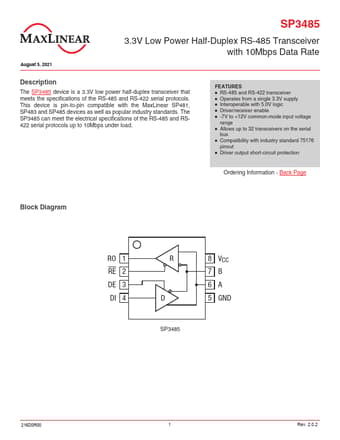

SP3485 Datasheet (914.24 KB)

Preview of SP3485 PDF

Datasheet Details

Part number:

SP3485

Manufacturer:

MaxLinear

File Size:

914.24 KB

Description:

3.3v low power half-duplex rs-485 transceiver.
