MBR10200, Schottky Barrier Rectifiers

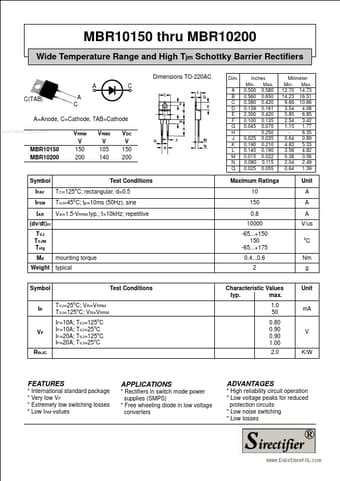

MBR10150 thru MBR10200 Wide Temperature Range and High Tjm Schottky Barrier Rectifiers Dimensions TO-220AC A C(TAB) A C C Dim.

A B C D E F G H J K L M N Q Inches Min.

Max.

0.500 0.580 0.560 0.650 0.380 0.420 0.139 0.161 2.300 0.420 0.100 0.135 0.045 0.070 0.250 0.025 0.035 0.190 0.210 0.140 0.190 0.015 0.022 0.080 0.115 0.025 0.055 Milimeter Min.

Max.

12.70 14.73 14.23 16.51 9.66 10.66 3.54 4.08 5.85 6.85 2.54 3.42 1.15 1.77 6.35 0.64 0.89 4.83 5.33 3.56 4.82 0.38 0.56 2.04 2.49 0.64 1.39 A=Ano

MBR10200 Features

* International standard package

* Very low VF

* Extremely low switching losses

* Low IRM-values APPLICATIONS

* Rectifiers in switch mode power supplies (SMPS)

* Free wheeling diode in low voltage converters ADVANTAGES

* High reliability circuit operation

* Low volt
