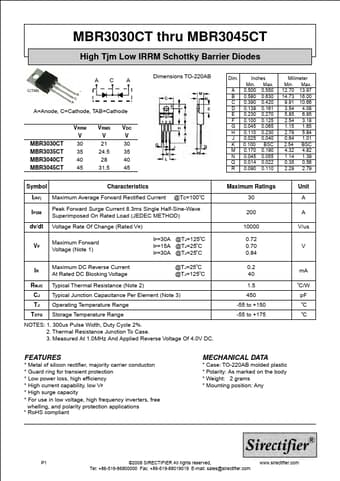

MBR3030CT thru MBR3045CT High Tjm Low IRRM Schottky Barrier Diodes AC A C(TAB) A C A A=Anode, C=Cathode, TAB=Cathode MBR3030CT MBR3035CT MBR3040CT MBR3045CT VRRM V 30 35 40 45 VRMS V 21 24.5 28 31.5 VDC V 30 35 40 45 Dimensions TO-220AB Dim.
A B C D E F G H J K M N Q R Inches Min.
Max.
0.500 0.550 0.580 0.630 0.390 0.420 0.139 0.161 0.230 0.270 0.100 0.125 0.045 0.065 0.110 0.230 0.025 0.040 0.100 BSC 0.170 0.190 0.045 0.055 0.014 0.022 0.090 0.110 Milimeter Min.
Max.
12.70 13.97 14.
