MBR3040CT, MBR3030CT Datasheet - Sirectifier Semiconductors

MBR3040CT Schottky Barrier Diodes

MBR3030CT thru MBR3045CT High Tjm Low IRRM Schottky Barrier Diodes AC A C(TAB) A C A A=Anode, C=Cathode, TAB=Cathode MBR3030CT MBR3035CT MBR3040CT MBR3045CT VRRM V 30 35 40 45 VRMS V 21 24.5 28 31.5 VDC V 30 35 40 45 Dimensions TO-220AB Dim. A B C D E F G H J K M N Q R Inches Min. Max. 0.500 0.550 0.580 0.630 0.390 0.420 0.139 0.161 0.230 0.270 0.100 0.125 0.045 0.065 0.110 0.230 0.025 0.040 0.100 BSC 0.170 0.190 0.045 0.055 0.014 0.022 0.090 0.110 Milimeter Min. Max. 12.70 13.97 14..

MBR3030CT-SirectifierSemiconductors.pdf

This datasheet PDF includes multiple part numbers: MBR3040CT, MBR3030CT. Please refer to the document for exact specifications by model.

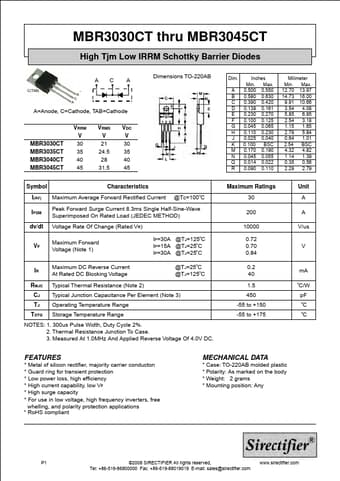

MBR3040CT Datasheet Preview Page 2

Datasheet Details

Part number:

MBR3040CT, MBR3030CT

Manufacturer:

Sirectifier Semiconductors

File Size:

98.40 KB

Description:

Schottky barrier diodes.

Note:

This datasheet PDF includes multiple part numbers: MBR3040CT, MBR3030CT.
Please refer to the document for exact specifications by model.
