MBR3040WT, MBR3035WT - SCHOTTKY RECTIFIER

MBR3040WT Description

SANGDEST MICROELECTRONICS MBR3035WT MBR3040WT MBR3045WT Technical Data Data Sheet N0015, Rev.- MBR3035WT/MBR3040WT/MBR3045WT SCHOTTKY RECTIFIER App.

MBR3040WT Features

* 150 ℃ TJ operation
* Center tap TO-247AD package
* Low forward voltage drop
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* High frequency operation
* Guard ring for enhanced ruggedness

MBR3040WT Applications

* Switching power supply
* Converters
* Free-Wheeling diodes
* Reverse battery protection

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBR3040WT, MBR3035WT. Please refer to the document for exact specifications by model.

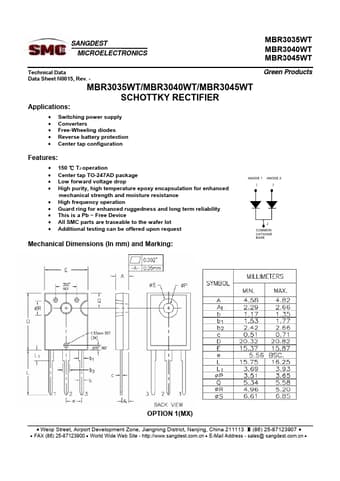

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBR3040WT, MBR3035WT
Manufacturer
SANGDESTMicroelectronics ↗
File Size
377.30 KB
Datasheet
MBR3035WT-SANGDESTMICROELECTRONICS.pdf
Description
SCHOTTKY RECTIFIER
Note
This datasheet PDF includes multiple part numbers: MBR3040WT, MBR3035WT.
Please refer to the document for exact specifications by model.
