MBR540 Schottky Barrier Rectifiers

MBR540 Wide Temperature Range and High Tjm Schottky Barrier Rectifiers Dimensions TO-220AC A C(TAB) A C C Dim. A B C D E F G H J K L M N Q A=Anode, C=Cathode, TAB=Cathode VRRM V 40 VRMS V 28 VDC V 40 MBR540 Inches Min. Max. 0.500 0.580 0.560 0.650 0.380 0.420 0.139 0.161 2.300 0.420 0.100 0.135 0.045 0.070 0.250 0.025 0.035 0.190 0.210 0.140 0.190 0.015 0.022 0.080 0.115 0.025 0.055 Milimeter Min. Max. 12.70 14.73 14.23 16.51 9.66 10.66 3.54 4.08 5.85 6.85 2.54 3.42 1.15 1.77 6.35 0.64 0.89.

MBR540 Features

* Metal of silicon rectifier, majority carrier conducton

* Guard ring for transient protection

* Low power loss, high efficiency

* High current capability, low VF

* High surge capacity

* For use in low voltage, high frequency inverters, free whelling, and polarity protection

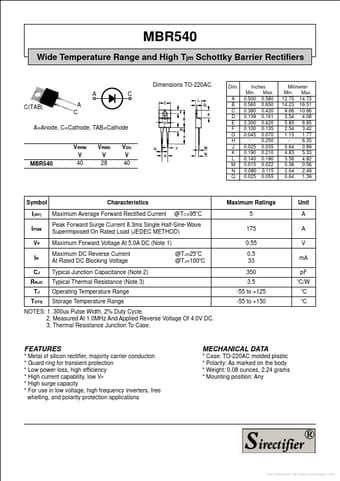

MBR540 Datasheet (159.08 KB)

MBR540 Datasheet Preview — Preview of MBR540 PDF

Datasheet Details

Part number:

MBR540

Manufacturer:

Sirectifier Semiconductors

File Size:

159.08 KB

Description:

Schottky barrier rectifiers.
