STPR1010CT (STPR1010CT - STPR1020CT) Ultra Fast Recovery Diodes

STPR1010CT thru STPR1020CT Ultra Fast Recovery Diodes Dimensions TO-220AB A C(TAB) A C A C A Dim. A B C D E F G H J K M N Q R A=Anode, C=Cathode, TAB=Cathode www.DataSheet4U.com STPR1010CT STPR1020CT VRRM V 100 200 VRMS V 70 140 VDC V 100 200 Inches Min. Max. 0.500 0.550 0.580 0.630 0.390 0.420 0.139 0.161 0.230 0.270 0.100 0.125 0.045 0.065 0.110 0.230 0.025 0.040 0.100 BSC 0.170 0.190 0.045 0.055 0.014 0.022 0.090 0.110 Milimeter Min. Max. 12.70 13.97 14.73 16.00 9.91 10.66 3.54 4.0.

STPR1010CT Features

* Glass passivated chip

* Superfast switching time for high efficiency

* Low forward voltage drop and high current capability

* Low reverse leakage current

* High surge capacity MECHANICAL DATA

* Case: TO-220AB molded plastic

* Polarity: As marked on the body

* Weigh

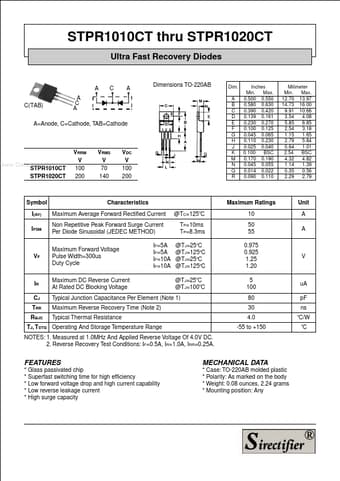

STPR1010CT_SirectifierSemiconductors.pdf
