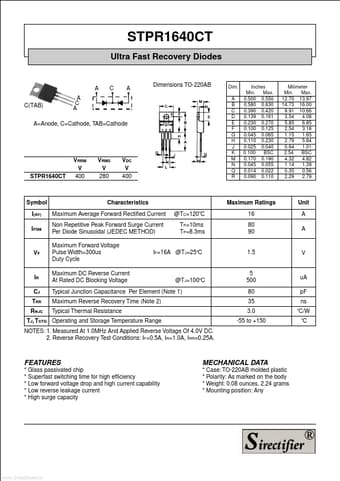

STPR1640CT Datasheet (Sirectifier Semiconductors)

STPR1640CT, Ultra Fast Recovery Diodes

STPR1640CT Ultra Fast Recovery Diodes Dimensions TO-220AB A C(TAB) A C A C A Dim.

A B C D E F G H J K M N Q R A=Anode, C=Cathode, TAB=Cathode STPR1640CT VRRM V 400 VRMS V 280 VDC V 400 Inches Min.

Max.

0.500 0.550 0.580 0.630 0.390 0.420 0.139 0.161 0.230 0.270 0.100 0.125 0.045 0.065 0.110 0.230 0.025 0.040 0.100 BSC 0.170 0.190 0.045 0.055 0.014 0.022 0.090 0.110 Milimeter Min.

Max.

12.70 13.97 14.73 16.00 9.91 10.66 3.54 4.08 5.85 6.85 2.54 3.18 1.15 1.65 2.79 5.84 0.64 1.01 2.54 B

STPR1640CT Features

* Glass passivated chip

* Superfast switching time for high efficiency

* Low forward voltage drop and high current capability

* Low reverse leakage current

* High surge capacity MECHANICAL DATA

* Case: TO-220AB molded plastic

* Polarity: As marked on the body

* Weigh
