MUR6030PT, MUR6020PT Datasheet - Sirectifier

MUR6030PT Ultra Fast Recovery Diodes

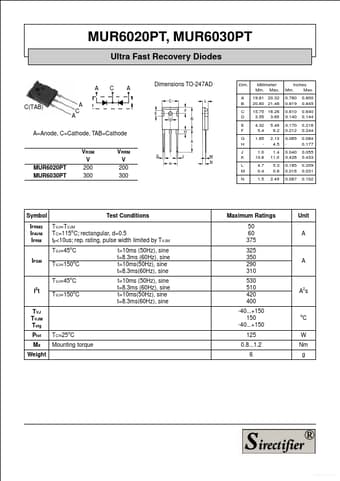

MUR6020PT, MUR6030PT Ultra Fast Recovery Diodes Dimensions TO-247AD A C(TAB) A C A C A Dim. A B C D E F G H Millimeter Min. Max. 19.81 20.32 20.80 21.46 15.75 16.26 3.55 3.65 4.32 5.4 1.65 1.0 10.8 4.7 0.4 1.5 5.49 6.2 2.13 4.5 1.4 11.0 5.3 0.8 2.49 Inches Min. Max. 0.780 0.819 0.610 0.140 0.170 0.212 0.065 0.040 0.426 0.185 0.016 0.087 0.800 0.845 0.640 0.144 0.216 0.244 0.084 0.177 0.055 0.433 0.209 0.031 0.102 A=Anode, C=Cathode, TAB=Cathode VRSM V 200 300 VRRM V 200 300 J K L M N MU.

MUR6030PT Features

* International standard package JEDEC TO-247AD

* Planar passivated chips

* Very short recovery time

* Extremely low switching losses

* Low IRM-values

* Soft recovery behaviour APPLICATIONS

* Rectifiers in switch mode power supplies (SMPS)

* Uninterruptible power sup

MUR6020PT_Sirectifier.pdf

This datasheet PDF includes multiple part numbers: MUR6030PT, MUR6020PT. Please refer to the document for exact specifications by model.
