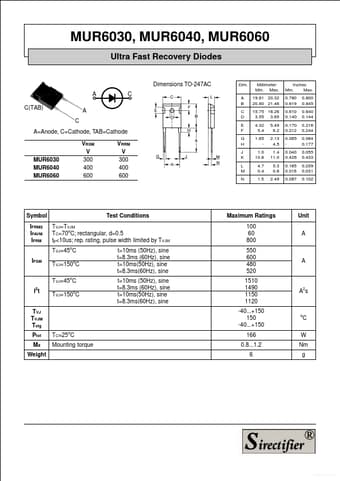

MUR6030, MUR6040, MUR6060 Ultra Fast Recovery Diodes Dimensions TO-247AC A C(TAB) C A=Anode, C=Cathode, TAB=Cathode VRSM V 300 400 600 VRRM V 300 400 600 A C Dim.
A B C D E F G H J K L M N Millimeter Min.
Max.
19.81 20.32 20.80 21.46 15.75 16.26 3.55 3.65 4.32 5.4 1.65 1.0 10.8 4.7 0.4 1.5 5.49 6.2 2.13 4.5 1.4 11.0 5.3 0.8 2.49 Inches Min.
Max.
0.780 0.819 0.610 0.140 0.170 0.212 0.065 0.040 0.426 0.185 0.016 0.087 0.800 0.845 0.640 0.144 0.216 0.244 0.084 0.177 0.055 0.433 0.209 0.031 0.102
MUR6060 Features
* International standard package JEDEC TO-247AC
* Planar passivatd chips
* Very short recovery time
* Extremely low switching losses
* Low IRM-values
* Soft recovery behaviour APPLICATIONS
* Antiparallel diode for high frequency switching devices
* Antisaturation dio
