MUR6060PT, MUR6040PT Datasheet - Sirectifier

MUR6060PT - Ultra Fast Recovery Diodes

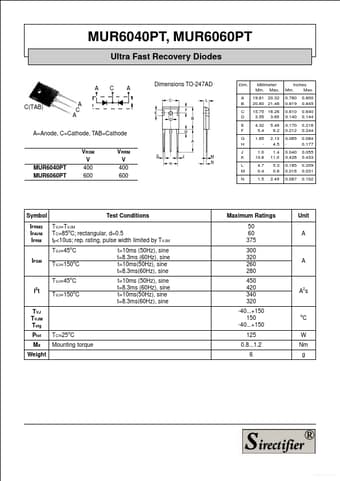

MUR6040PT, MUR6060PT Ultra Fast Recovery Diodes Dimensions TO-247AD A C(TAB) A C A C A Dim.

A B C D E F G H Millimeter Min.

Max.

19.81 20.32 20.80 21.46 15.75 16.26 3.55 3.65 4.32 5.4 1.65 1.0 10.8 4.7 0.4 1.5 5.49 6.2 2.13 4.5 1.4 11.0 5.3 0.8 2.49 Inches Min.

Max.

0.780 0.819 0.610 0.140 0.170 0.212 0.065 0.040 0.426 0.185 0.016 0.087 0.800 0.845 0.640 0.144 0.216 0.244 0.084 0.177 0.055 0.433 0.209 0.031 0.102 A=Anode, C=Cathode, TAB=Cathode VRSM V 400 600 VRRM V 400 600 J K L M N MU

MUR6060PT Features

* International standard package JEDEC TO-247AD

* Planar passivated chips

* Very short recovery time

* Extremely low switching losses

* Low IRM-values

* Soft recovery behaviour APPLICATIONS

* Rectifiers in switch mode power supplies (SMPS)

* Uninterruptible power sup

MUR6040PT_Sirectifier.pdf

This datasheet PDF includes multiple part numbers: MUR6060PT, MUR6040PT. Please refer to the document for exact specifications by model.
