MUR6065P Ultra-Fast Recovery Diode

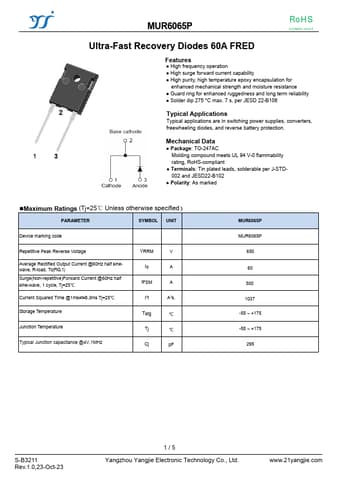

📥 Download Datasheet Datasheet Preview Page 1

Description

MUR6065P RoHS COMPLIANT Ultra-Fast Recovery Diodes 60A FRED .

📥 Download Datasheet

Preview of MUR6065P PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MUR6065P
Manufacturer
Yangzhou Yangjie
File Size
267.26 KB
Datasheet
MUR6065P-YangzhouYangjie.pdf
Description
Ultra-Fast Recovery Diode

Features

* High frequency operation
* High surge forward current capability
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term reliability
* Solder dip 275 °C max. 7 s, per JESD 22

Applications

* Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. Mechanical Data
* Package: TO-247AC Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant
* Terminals: Tin plated leads, solderable per J-STD002 and JESD22-B1
