STPR2010CT Datasheet (Sirectifier) - Ultra Fast Recovery Diodes

STPR2010CT, Ultra Fast Recovery Diodes

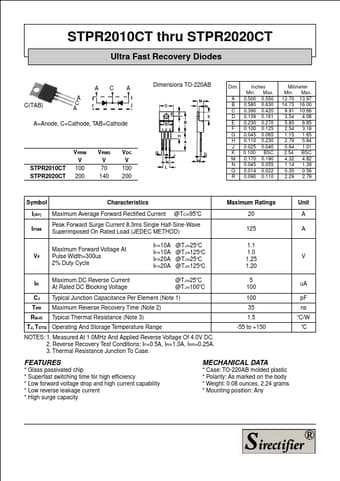

STPR2010CT thru STPR2020CT Ultra Fast Recovery Diodes C(TAB) AC A A C A A=Anode, C=Cathode, TAB=Cathode STPR2010CT STPR2020CT VRRM V 100 200 VRMS V 70 140 VDC V 100 200 Dimensions TO-220AB Dim.

A B C D E F G H J K M N Q R Inches Min.

Max.

0.500 0.550 0.580 0.630 0.390 0.420 0.139 0.161 0.230 0.270 0.100 0.125 0.045 0.065 0.110 0.230 0.025 0.040 0.100 BSC 0.170 0.190 0.045 0.055 0.014 0.022 0.090 0.110 Milimeter Min.

Max.

12.70 13.97 14.73 16.00 9.91 10.66 3.54 4.08 5.85 6.85 2.54 3.18

STPR2010CT Features

* Glass passivated chip

* Superfast switching time for high efficiency

* Low forward voltage drop and high current capability

* Low reverse leakage current

* High surge capacity MECHANICAL DATA

* Case: TO-220AB molded plastic

* Polarity: As marked on the body

* Weigh
