Datasheet Details
Part number:
STPR2020CT, STPR2010CT
Manufacturer:
Sirectifier
File Size:
90.63 KB
Description:
Ultra fast recovery diodes.
Note:
This datasheet PDF includes multiple part numbers: STPR2020CT, STPR2010CT.
Please refer to the document for exact specifications by model.
STPR2020CT, STPR2010CT, Ultra Fast Recovery Diodes

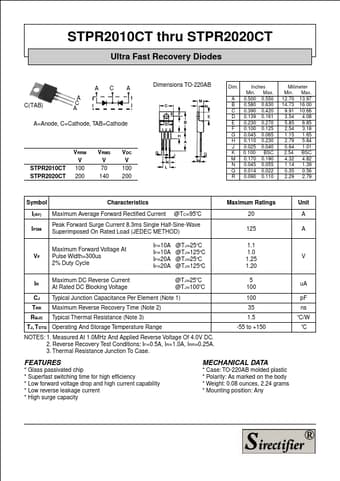

STPR2010CT thru STPR2020CT Ultra Fast Recovery Diodes C(TAB) AC A A C A A=Anode, C=Cathode, TAB=Cathode STPR2010CT STPR2020CT VRRM V 100 200 VRMS V 70 140 VDC V 100 200 Dimensions TO-220AB Dim.
A B C D E F G H J K M N Q R Inches Min.
Max.
0.500 0.550 0.580 0.630 0.390 0.420 0.139 0.161 0.230 0.270 0.100 0.125 0.045 0.065 0.110 0.230 0.025 0.040 0.100 BSC 0.170 0.190 0.045 0.055 0.014 0.022 0.090 0.110 Milimeter Min.
Max.
12.70 13.97 14.73 16.00 9.91 10.66 3.54 4.08 5.85 6.85 2.54 3.18
STPR2020CT Features
* Glass passivated chip
* Superfast switching time for high efficiency
* Low forward voltage drop and high current capability
* Low reverse leakage current
* High surge capacity MECHANICAL DATA
* Case: TO-220AB molded plastic
* Polarity: As marked on the body
* Weigh
