SUR12060 Ultra Fast Recovery Epitaxial Diodes

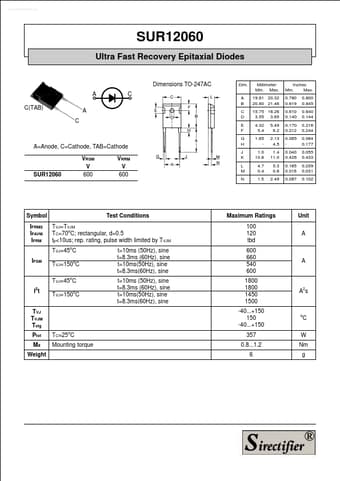

www.DataSheet4U.com SUR12060 Ultra Fast Recovery Epitaxial Diodes Dimensions TO-247AC A C(TAB) C A C Dim. A B C D E F G H J K L M N Millimeter Min. Max. 19.81 20.32 20.80 21.46 15.75 16.26 3.55 3.65 4.32 5.4 1.65 1.0 10.8 4.7 0.4 1.5 5.49 6.2 2.13 4.5 1.4 11.0 5.3 0.8 2.49 Inches Min. Max. 0.780 0.819 0.610 0.140 0.170 0.212 0.065 0.040 0.426 0.185 0.016 0.087 0.800 0.845 0.640 0.144 0.216 0.244 0.084 0.177 0.055 0.433 0.209 0.031 0.102 A=Anode, C=Cathode, TAB=Cathode VRSM V 600 VRRM V 600 .

SUR12060 Features

* International standard package JEDEC TO-247AC

* Planar passivatd chips

* Very short recovery time

* Extremely low switching losses

* Low IRM-values

* Soft recovery behaviour APPLICATIONS

* Antiparallel diode for high frequency switching devices

* Antisaturation dio

SUR12060_Sirectifier.pdf

SUR12060 Datasheet Preview — Preview of SUR12060 PDF

Datasheet Details

Part number:

SUR12060

Manufacturer:

Sirectifier

File Size:

180.87 KB

Description:

Ultra fast recovery epitaxial diodes.
