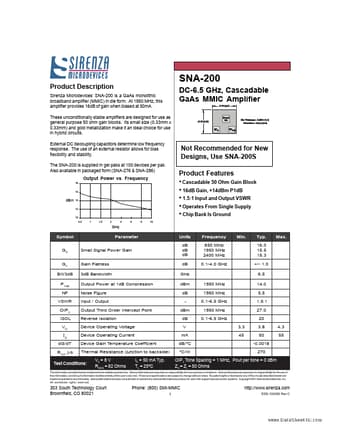

SNA-200 Cascadable GaAs MMIC Amplifier

Sirenza Microdevices’ SNA-200 is a GaAs monolithic broadband amplifier (MMIC) in die form. At 1950 MHz, this amplifier provides 16dB of gain when biased at 50mA. These unconditionally stable amplifiers are designed for use as general purpose 50 ohm gain blocks. Its small size (0.33mm x 0.33mm) and g.

SNA-200 Features

* Cascadable 50 Ohm Gain Block

* 16dB Gain, +14dBm P1dB

* 1.5:1 Input and Output VSWR

* Operates From Single Supply

* Chip Back Is Ground dBm 14 13 12 0.5 1 1.5 2 4 6 8 10 GHz Symbol GP GF BW3dB P1dB NF VSWR Parameter Small Signal Pow er Gain Gain Flatnes
