SPA-1118 - Power Amplifier

SPA-1118 Description

SPA-1118 Product .
Sirenza Microdevices’ SPA-1118 is a high efficiency GaAs Heterojunction Bipolar Transistor (HBT) amplifier housed in a low-cost surface-mountable plas.

SPA-1118 Features

* Now available in Lead Free, RoHS Compliant, & Green Packaging
* High Linearity Performance: +21 dBm IS-95 Channel Power at -55 dBc ACP +48 dBm OIP3 Typ.
* On-chip Active Bias Control
* Patented High Reliability GaAs HBT Technology
* Surface-Mountable Plastic

SPA-1118 Applications

* The matte tin finish on Sirenza’s lead-free package utilizes a post annealing process to mitigate tin whisker formation and is RoHS compliant per EU Directive 2002/95. This package is also manufactured with green molding compounds that contain no antimony trioxide nor halogenated fire retardants.

📥 Download Datasheet

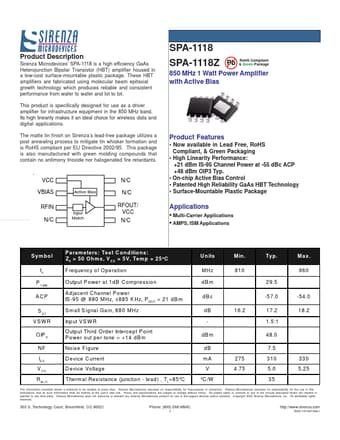

Preview of SPA-1118 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SPA-1118
Manufacturer
Sirenza Microdevices
File Size
135.52 KB
Datasheet
SPA-1118_SirenzaMicrodevices.pdf
Description
Power Amplifier
