SPA-1118Z

Power Amplifier

SPA-1118Z Features

* Now available in Lead Free, RoHS Compliant, & Green Packaging

* High Linearity Performance: +21 dBm IS-95 Channel Power at -55 dBc ACP +48 dBm OIP3 Typ.

* On-chip Active Bias Control

* Patented High Reliability GaAs HBT Technology

* Surface-Mountable Plastic

SPA-1118Z General Description

Sirenza Microdevices’ SPA-1118 is a high efficiency GaAs Heterojunction Bipolar Transistor (HBT) amplifier housed in a low-cost surface-mountable plastic package. These HBT amplifiers are fabricated using molecular beam epitaxial growth technology which produces reliable and consistent performance f.

SPA-1118Z Datasheet (135.52 KB)

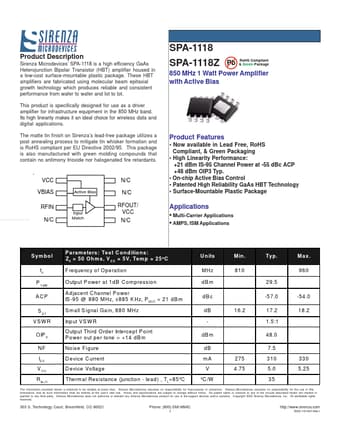

Preview of SPA-1118Z PDF

Datasheet Details

Part number:

SPA-1118Z

Manufacturer:

Sirenza Microdevices

File Size:

135.52 KB

Description:

Power amplifier.
