SPA-1318

Power Amplifier

SPA-1318 Features

* High Linearity Performance: +20.1 dBm W-CDMA Channel Power at -50 dBc ACP +47 dBm Typ. OIP3 VCC VBIAS RFIN N/C www.DataSheet4U.com RFOUT/ VCC Input Match Reduction Symbol f0 P 1dB AC P S 21 VSWR OIP3 NF Icc Parameters: Test Conditions: Z0 = 50 Ohms, Temp = 25ºC, Vcc = 5.0V Frequency

SPA-1318 General Description

Sirenza Microdevices’ SPA-1318 is a high efficiency GaAs Heterojunction Bipolar Transistor (HBT) amplifier housed in a low-cost surface-mountable plastic package. These HBT amplifiers are fabricated using molecular beam epitaxial growth technology which produces reliable and consistent performance f.

SPA-1318 Datasheet (114.36 KB)

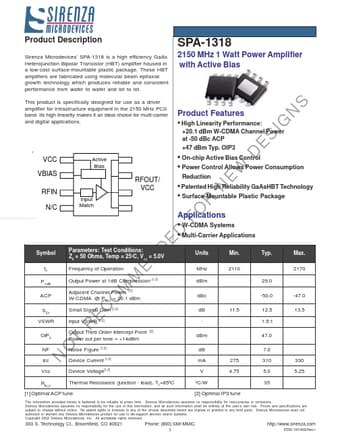

Preview of SPA-1318 PDF

Datasheet Details

Part number:

SPA-1318

Manufacturer:

Sirenza Microdevices

File Size:

114.36 KB

Description:

Power amplifier.
