ST7735 - 262K Color Single-Chip TFT Controller/Driver

ST7735 Description

ST ST7735 262K Color Single-Chip TFT Controller/Driver 1 Introduction The ST7735 is a single-chip controller/driver for 262K-color, graphic type T.

ST7735 Features

* Single chip TFT-LCD Controller/Driver with RAM On-chip Display Data RAM (i. e. Frame Memory) -132 (H) x RGB x 162 (V) bits LCD Driver Output Circuits: -Source Outputs: 132 RGB channels -Gate Outputs: 162 channels -Common electrode outpu

📥 Download Datasheet

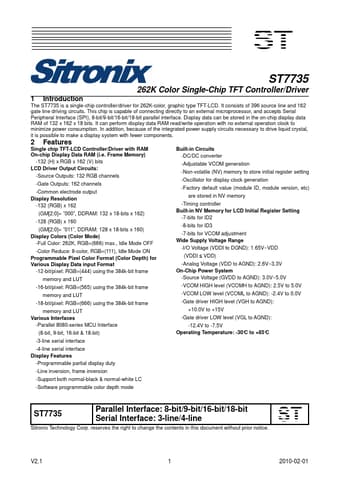

Preview of ST7735 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ST7735
Manufacturer
Sitronix Technology
File Size
1.96 MB
Datasheet
ST7735_SitronixTechnology.pdf
Description
262K Color Single-Chip TFT Controller/Driver
