ST7715R 262K Color Single-Chip TFT Controller/Driver

ST ST7715R 262K Color Single-Chip TFT Controller/Driver 1 Introduction The ST7715R is a single-chip controller/driver for 262K-color, graphic type TFT-LCD. It consists of 396 source line and 132 gate line driving circuits. This chip is capable of connecting directly to an external microprocessor, and accepts Serial Peripheral Interface (SPI), 8-bit/9-bit/16-bit/18-bit parallel interface. Display data can be stored in the on-chip display data RAM of 132 x 132 x 18 bits. It can perform displ.

ST7715R Features

* Single chip TFT-LCD Controller/Driver with RAM Built-in Circuits On-chip Display Data RAM (i.e. Frame Memory) DC/DC converter 132 (H) x RGB x 132 (V) bits Adjustable VCOM generation Non-volatile (NV) memory to store initial register setting LCD Driver Output Circuits: Oscillator for display

ST7715R-Sitronix.pdf

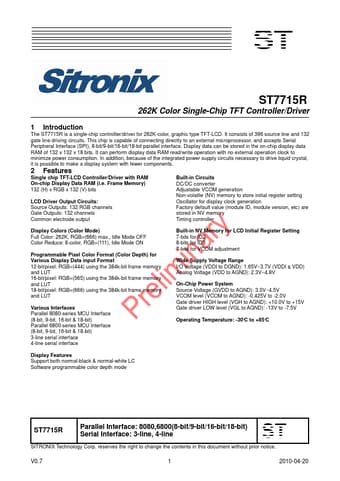

Preview of ST7715R PDF
ST7715R Datasheet Preview Page 2 ST7715R Datasheet Preview Page 3

Datasheet Details

Part number:

ST7715R

Manufacturer:

Sitronix

File Size:

1.99 MB

Description:

262k color single-chip tft controller/driver.
