ST7065C

40Ch Segment/Common Driver

ST7065C Features

* Display driving bias : static to 1/5 Power supply for logic : 2.7V ~ 5.5V Power supply for LCD voltage (VDD~VEE) : 3V ~ 11V 64 Pin QFP package and bare chip available Description: ST7065C is a segment/common driver for dot matrix type LCD display. It features 40 channels with 20 X 2 bits bi-direc

ST7065C General Description

ST7065C is a segment/common driver for dot matrix type LCD display. It features 40 channels with 20 X 2 bits bi-directional shift registers, data latches, LCD drivers and logic control circuits. It is fabricated by high voltage CMOS process with low current consumption. The ST7065C can convert ser.

ST7065C Datasheet (131.87 KB)

Preview of ST7065C PDF

Datasheet Details

Part number:

ST7065C

Manufacturer:

Sitronix

File Size:

131.87 KB

Description:

40ch segment/common driver.

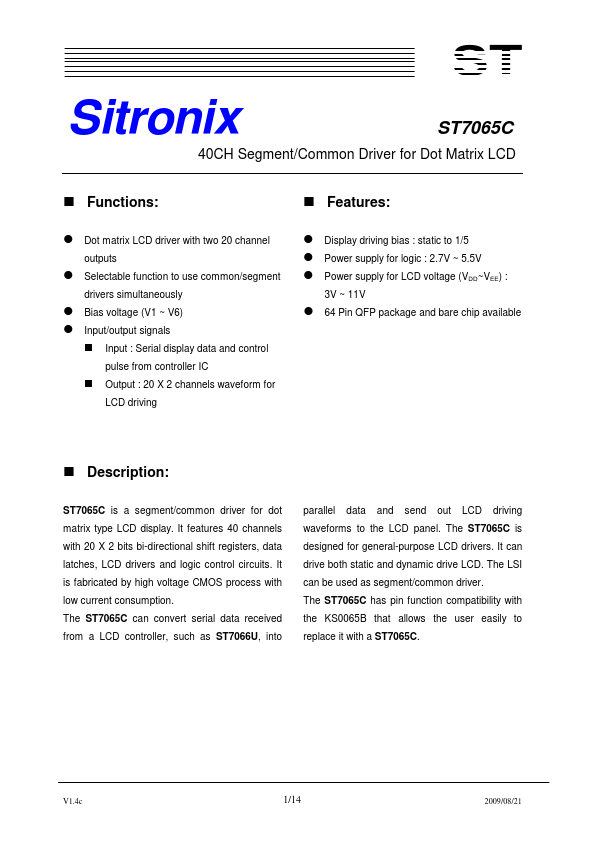

ST Sitronix ST7065C 40CH Segment/Common Driver for Dot Matrix LCD Functions: Dot matrix LCD driver with two 20 channel outputs Selectable function.

📁 Related Datasheet

ST7063 80CH Segment Driver (Sitronix)

ST7063C 80Ch Segment Driver (Sitronix)

ST7066 Dot Matrix LCD Controller/Driver (Sitronix)

ST7066U Dot Matrix LCD Controller/Driver (Sitronix)

ST70-22MF TVS (Shindengen)

ST70-27F TVS (Shindengen)

ST70-27FZ TVS (Shindengen)

ST70-27MF TVS (SHINDENGEN)

ST70-30MF TVS (SHINDENGEN)

ST700C PHASE CONTROL THYRISTORS Hockey Puk Version (International Rectifier)

TAGS

ST7065C 40Ch Segment Common Driver Sitronix

Image Gallery

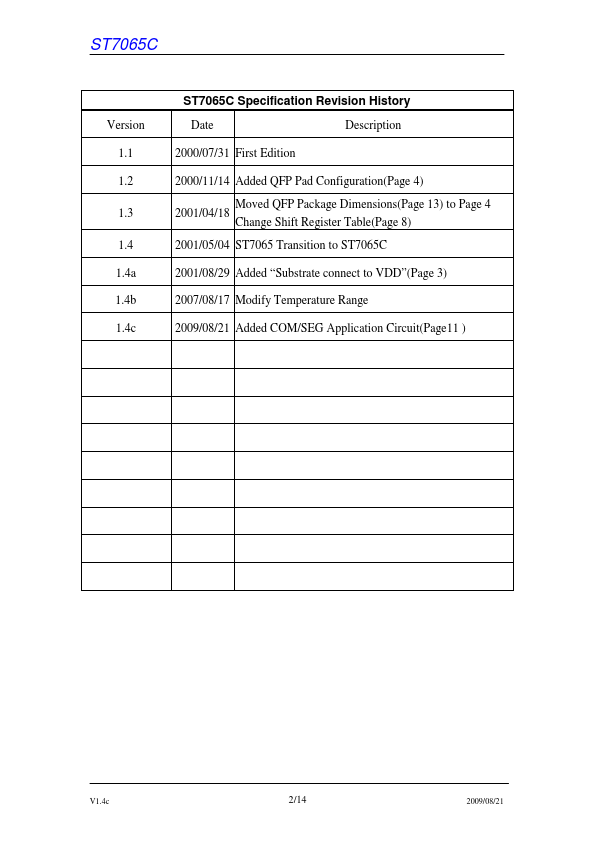

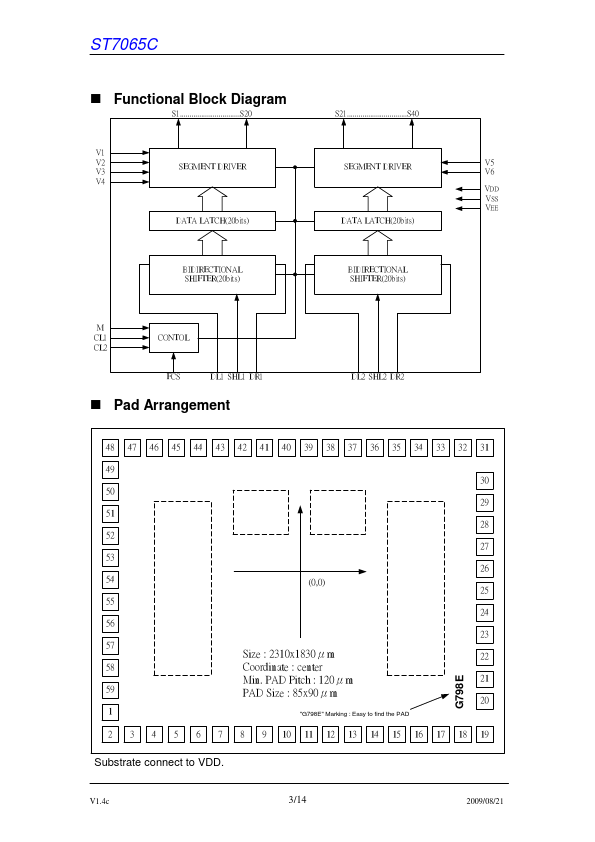

ST7065C Datasheet Preview Page 2 ST7065C Datasheet Preview Page 3
