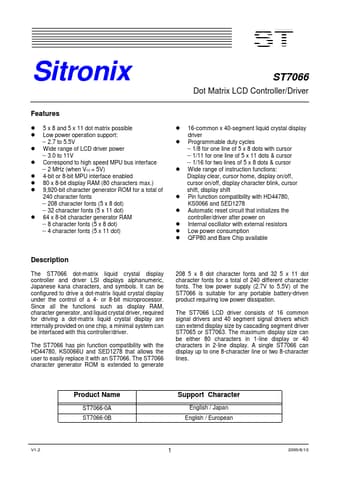

ST7066 Datasheet, Controller/driver, Sitronix

ST7066 Features

• Controller/driver !" 5 x 8 and 5 x 11 dot matrix possible !" Low power operation support:
• 2.7 to 5.5V !" Wide range of LCD driver power
• 3.0 to 11V !" Correspond to high speed MPU bus

PDF File Details

Part number:

ST7066

Manufacturer:

Sitronix

File Size:

318.43kb

Download:

📄 Datasheet

Description:

Dot matrix lcd controller/driver.
