ST7525-G4 - 192 x 65 Dot Matrix LCD Controller/Driver

Datasheet Summary

Features

  • Single-chip LCD Controller & Driver Driver Output Circuits 192-segment / 64-common+1-icon-common On-chip Display Data RAM (DDRAM) Capacity: 192x65= 12,480 bits Microprocessor Interface 8-bit parallel bi-directional interface supports 6800-series or 8080-series MPU 4-line SPI I2C Interface Built-in Oscillation Circuit Oscillator requires no external component Programmable frame frequency External RST (hardware reset) Pin Various Display Functions Partial display Low Power Consumption Analog Circ.

📥 Download Datasheet

Datasheet preview – ST7525-G4

Datasheet Details

Part number ST7525-G4
Manufacturer Sitronix
File Size 1.09 MB
Description 192 x 65 Dot Matrix LCD Controller/Driver
Datasheet download datasheet ST7525-G4 Datasheet

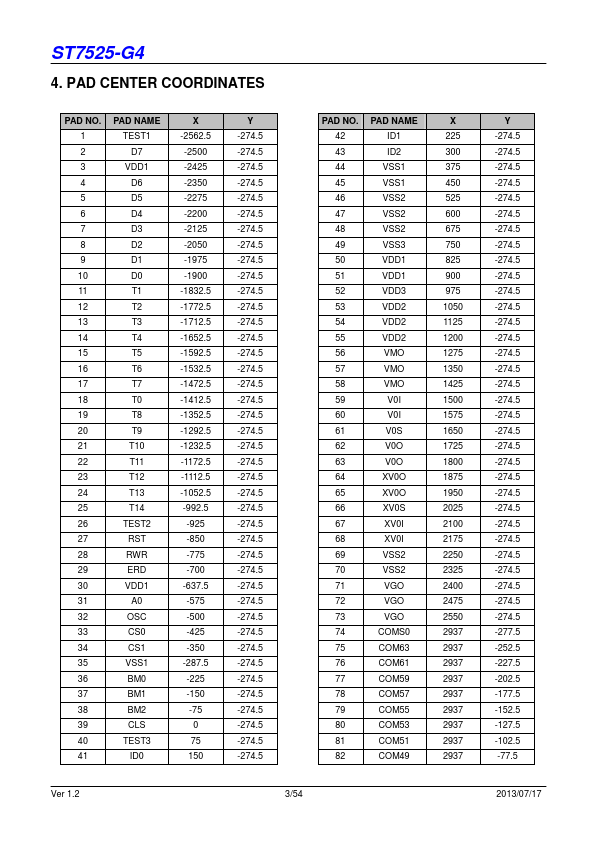

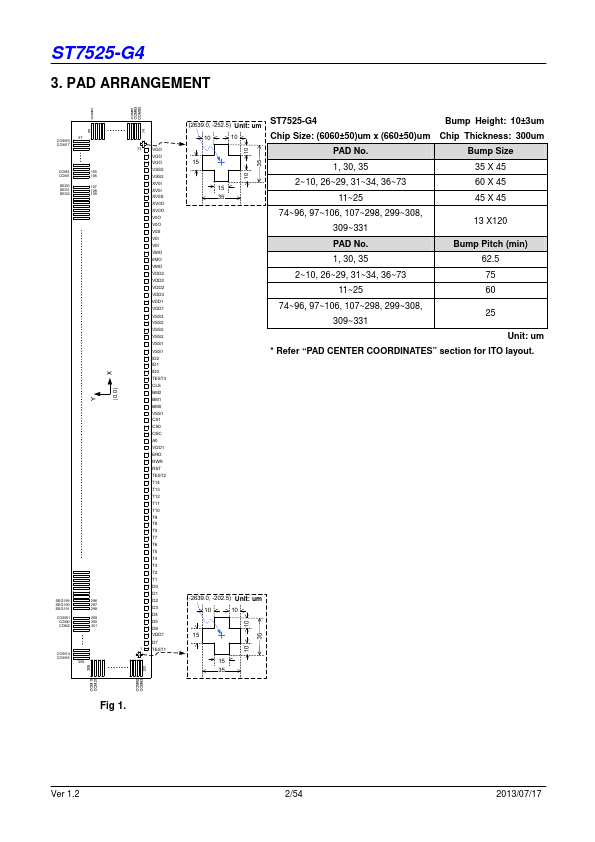

Additional preview pages of the ST7525-G4 datasheet.

📁 Similar Datasheet

  • ST75285 - MULTIPLE RS-232 DRIVERS AND RECEIVERS (ST Microelectronics)
  • ST750A - ADJUSTABLE STEP-DOWN / CURRENT-MODE PWM DC-DC CONVERTERS (ST Microelectronics)
  • ST75185 - MULTIPLE RS-232 DRIVERS AND RECEIVERS (ST Microelectronics)
  • ST75185C - Multiple RS-232 drivers/receivers (ST Microelectronics)
  • ST7533 - 33 x 96 Dot Matrix LCD Controller/Driver (Sitronix Technology)
  • ST7536 - POWER LINE MODEM (ST Microelectronics)
  • ST7537HS1 - HOME AUTOMATION MODEM (ST Microelectronics)
  • ST7538 - POWER LINE FSK TRANSCEIVER (ST Microelectronics)
  • ST7538Q - FSK power line transceiver (STMicroelectronics)
  • ST7540 - FSK power line transceiver (ST Microelectronics)
Other Datasheets by Sitronix
  • ST7525 - 192 x 65 Dot Matrix LCD Controller/Driver
  • ST75256 - 4 Level Gray Scale Dot Matrix LCD Controller/Driver
  • ST7522 - 17 x 96 Dot Matrix LCD Controller
  • ST7528 - 16 Gray Scale Dot Matrix LCD Controller
  • ST7529 - 32-Gray Scale Dot Matrix LCD Controller/Driver
  • ST7511U - 640 x 320 Mono-color TFT-LCD Controller/Driver
  • ST7530 - 65K Color Dot Matrix LCD Controller/Driver
  • ST75320 - 320x240 Dot Matrix LCD Controller/Driver

Full PDF Text Transcription

Click to expand full text

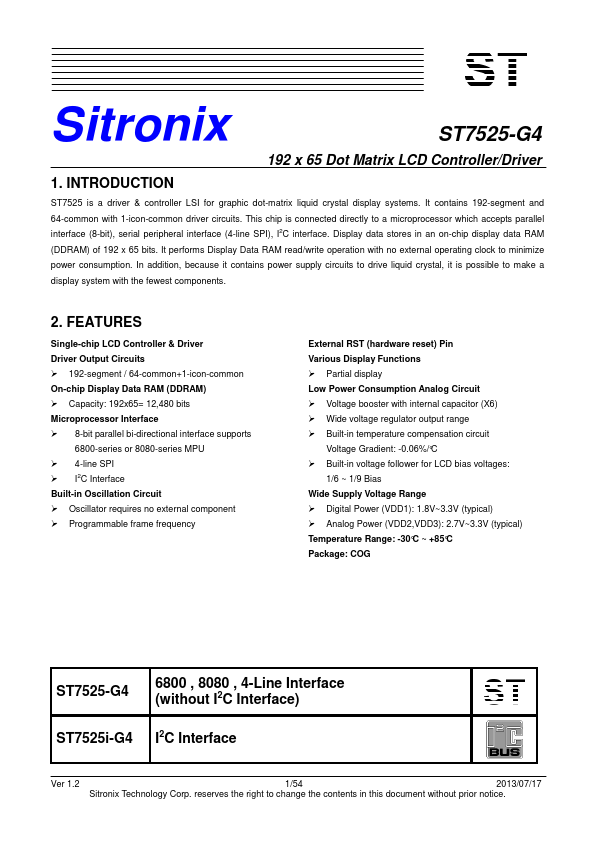

Sitronix ST7525-G4 192 x 65 Dot Matrix LCD Controller/Driver 1. INTRODUCTION ST7525 is a driver & controller LSI for graphic dot-matrix liquid crystal display systems. It contains 192-segment and 64-common with 1-icon-common driver circuits. This chip is connected directly to a microprocessor which accepts parallel interface (8-bit), serial peripheral interface (4-line SPI), I2C interface. Display data stores in an on-chip display data RAM (DDRAM) of 192 x 65 bits. It performs Display Data RAM read/write operation with no external operating clock to minimize power consumption. In addition, because it contains power supply circuits to drive liquid crystal, it is possible to make a display system with the fewest components. 2.
