ST7580A - 160 x 84 Dot Matrix LCD Controller/Driver

Name: ST7580A
SKU: ST7580A-1577960

Sitronix

The ST7580A by Sitronix is a 160 x 84 Dot Matrix LCD Controller/Driver. Below is the official datasheet preview.

Datasheet Details

Part number	ST7580A
Manufacturer	Sitronix
File Size	619.59 KB
Description	160 x 84 Dot Matrix LCD Controller/Driver
Datasheet	ST7580A-Sitronix.pdf

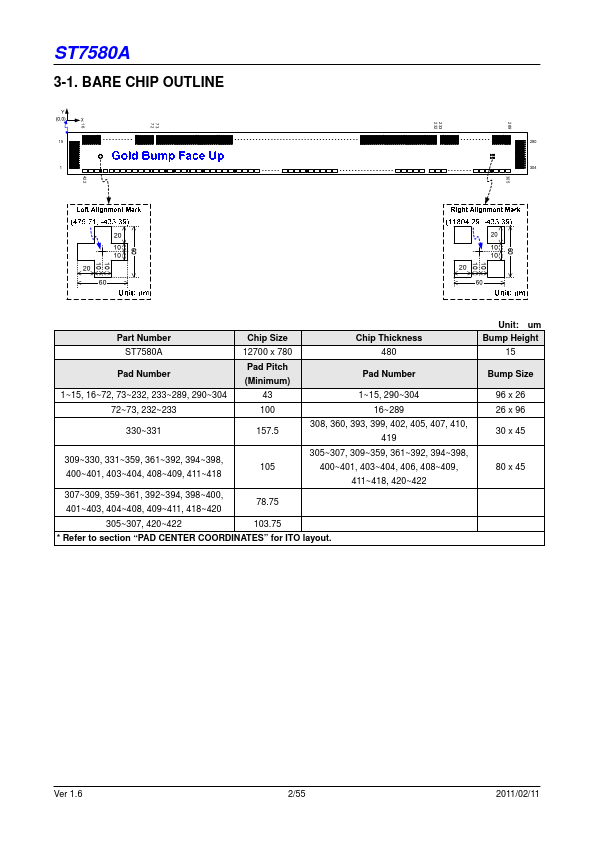

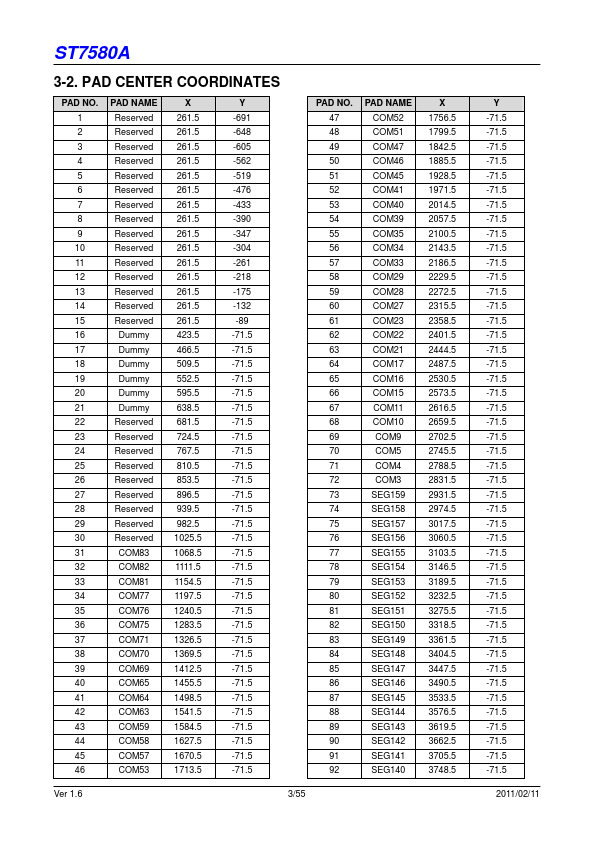

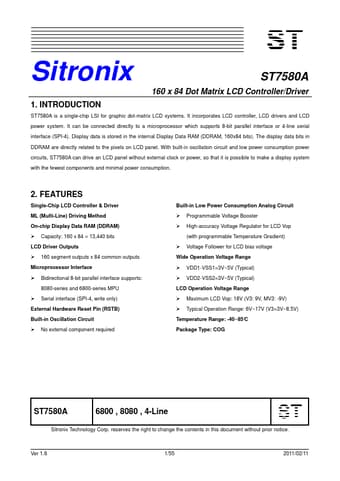

Additional preview pages of the ST7580A datasheet.

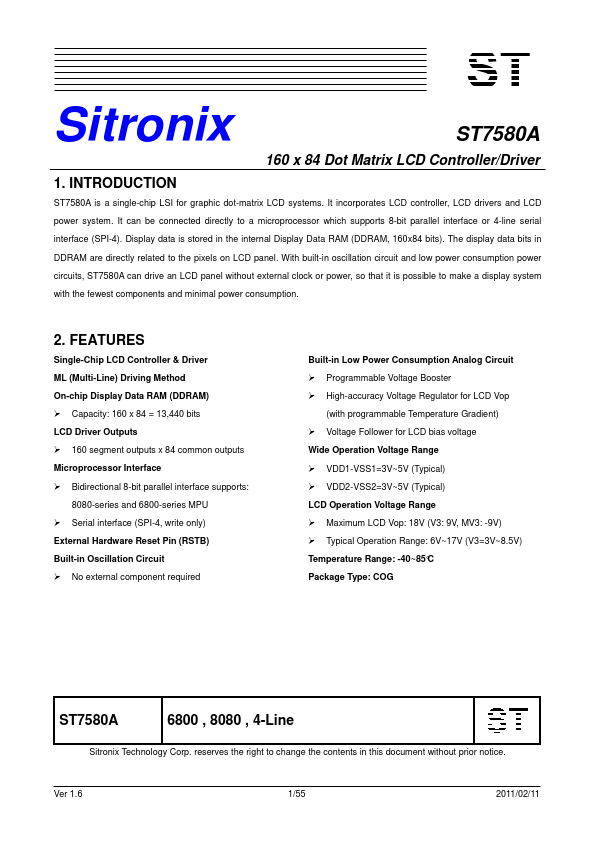

Single-Chip LCD Controller & Driver ML (Multi-Line) Driving Method On-chip Display Data RAM (DDRAM) Capacity: 160 x 84 = 13,440 bits LCD Driver Outputs 160 segment outputs x 84 common outputs Microprocessor Interface Bidirectional 8-bit parallel interface supports: 8080-series and 6800-series MPU Serial interface (SPI-4, write only) External Hardware Reset Pin (RSTB) Built-in Oscillation Circuit No external component required Built-in Low Power Consumption Analog Circuit Programmable Voltage Bo.
