ST7586S Datasheet, Controller/driver, Sitronix Technology

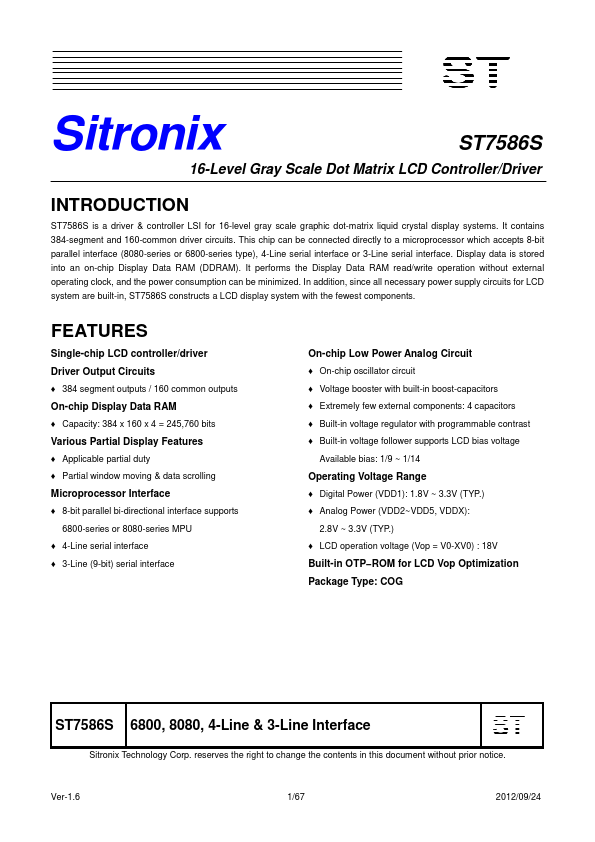

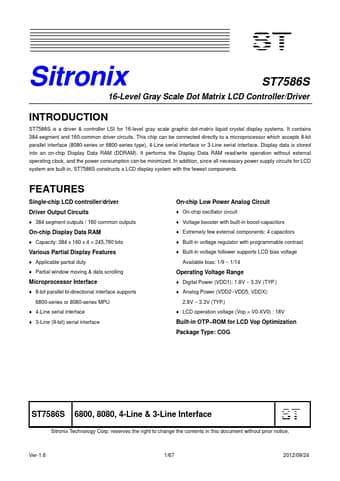

ST7586S Features

  • Controller/driver Single-chip LCD controller/driver Driver Output Circuits
  • 384 segment outputs / 160 common outputs
  • On-chip oscillator circuit
  • Voltage booster with built-in

PDF File Details

Part number:

ST7586S

Manufacturer:

Sitronix Technology

File Size:

748.80kb

Download:

📄 Datasheet

Description:

4-level gray scale dot matrix lcd controller/driver.

Datasheet Preview: ST7586S 📥 Download PDF (748.80kb)

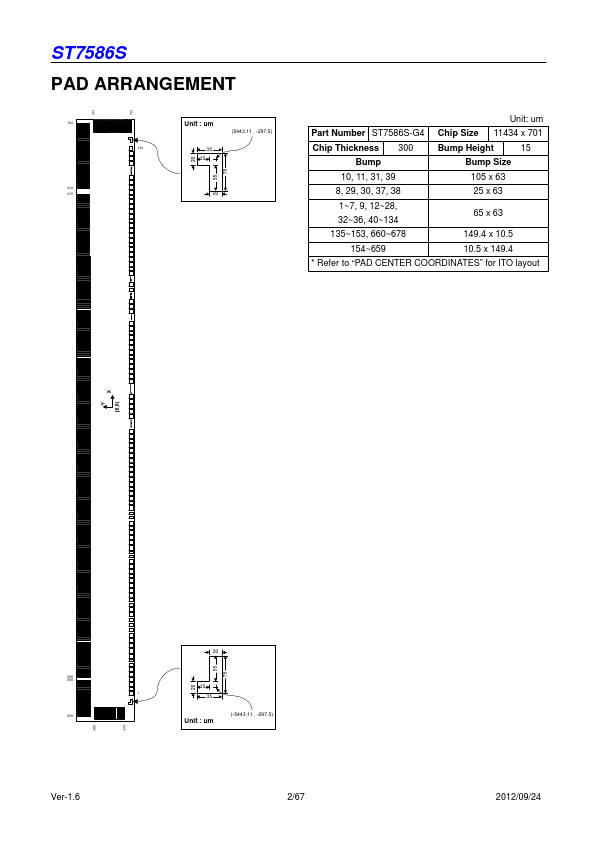

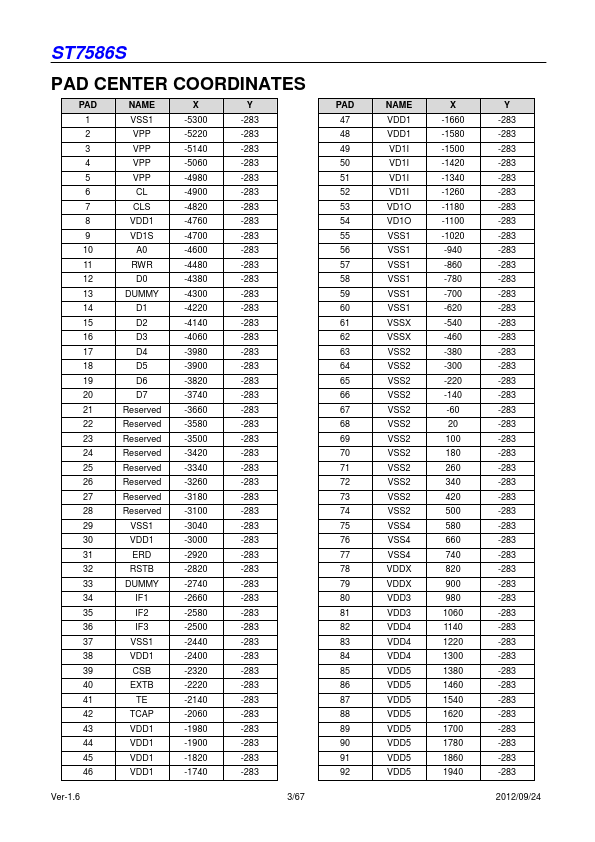

Page 2 of ST7586S Page 3 of ST7586S

TAGS

ST7586S
4-Level
Gray
Scale
Dot
Matrix
LCD
Controller
Driver
Sitronix Technology
