SUP500F8 - Low-Power High-Performance Low-Cost 167 Channel GPS Smart Antenna Module

SkyTraq

Datasheet Details

Part number	SUP500F8
Manufacturer	SkyTraq
File Size	195.22 KB
Description	Low-Power High-Performance Low-Cost 167 Channel GPS Smart Antenna Module
Datasheet	SUP500F8-SkyTraq.pdf

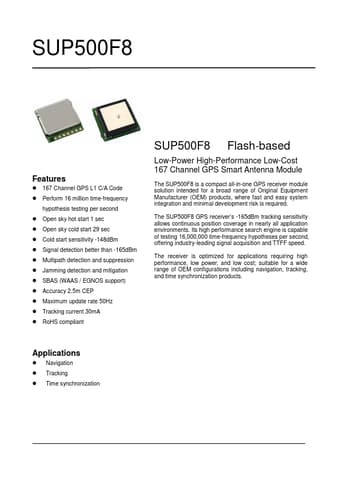

167 Channel GPS L1 C/A Code Perform 16 million time-frequency hypothesis testing per second Open sky hot start 1 sec Open sky cold start 29 sec Cold start sensitivity -148dBm Signal detection better than -165dBm Multipath detection and suppression Jamming detection and mitigation SBAS (WAAS / EGNOS support) Accuracy 2.5m CEP Maximum update rate 50Hz Tracking current 30mA RoHS compliant SUP500F8 Flash-based Low-Power High-Performance Low-Cost 167 Channel GPS Smart Antenna Module The SUP500F8 is.
