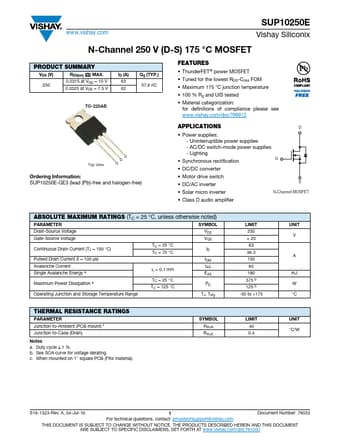

SUP10250E Datasheet, Mosfet, Vishay

SUP10250E Features

• Mosfet
• ThunderFET® power MOSFET
• Tuned for the lowest RDS-Coss FOM
• Maximum 175 °C junction temperature
• 100 % Rg and UIS tested
• Material categor

PDF File Details

Part number:

SUP10250E

Manufacturer:

Vishay ↗

File Size:

166.94kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

SUP10250E Application

• Applications D
• Power supplies: - Uninterruptible power supplies - AC/DC switch-mode power supplies - Lighting
• Synchrono
