SUP45N03-13L Datasheet - Vishay Siliconix

SUP45N03-13L N-Channel MOSFET

SUP45N03-13L Vishay Siliconix N-Channel 30-V (D-S), 175_C MOSFET PRODUCT SUMMARY V(BR)DSS (V) 30 rDS(on) (W) 0.013 @ VGS = 10 V 0.02 @ VGS = 4.5 V ID (A) 45a 45a TO-220AB D G DRAIN connected to TAB G D S Top View S N-Channel MOSFET SUP45N03-13L ABSOLUTE MAXIMUM RATINGS (TC = 25_C UNLESS OTHERWISE NOTED) Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 175_C) Pulsed Drain Current Avalanche Current Repetitive Avalanche Energyb Maximum Power Dissipationb O.

SUP45N03-13L_VishaySiliconix.pdf

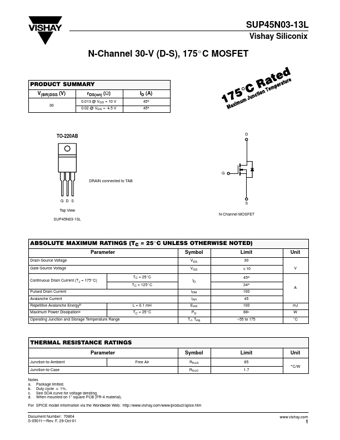

Preview of SUP45N03-13L PDF
SUP45N03-13L Datasheet Preview Page 2 SUP45N03-13L Datasheet Preview Page 3

Datasheet Details

Part number:

SUP45N03-13L

Manufacturer:

Vishay ↗ Siliconix

File Size:

42.20 KB

Description:

N-channel mosfet.
