CX77140 - PA-Module

CX77140 Description

DATA SHEET CX77140: PA eeModule for CDMA / AMPS (824 *849 MHz) Applications * Digital cellular (CDMA) * Analog cellular (AMPS).

CX77140 Features

* Low voltage positive bias supply - 3.2 V to 4.2 V
* Low VREF - 2.85 V, nominal
* Good linearity
* High efficiency
* Dual mode operation
* Large dynamic range
* 10-pin package - 4 mm x 4 mm x 1.5 mm
* Power down control
* Low p

CX77140 Applications

* Digital cellular (CDMA)
* Analog cellular (AMPS)
* Wireless local loop (WLL) t 4U . m o c The CX77140 Power Amplifier Module (PAM) is a dual-mode, fully matched, 10-pin surface mount module developed for Code Division Multiple Access (CDMA) / Advanced Mobile Phone Servi

📥 Download Datasheet

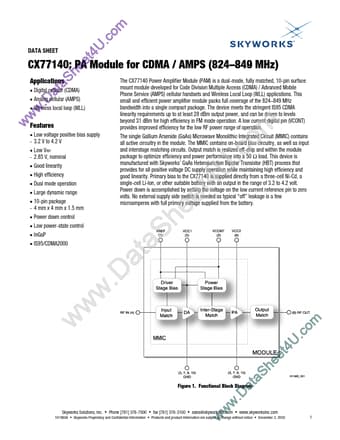

Preview of CX77140 PDF
