CX77304-16

PA Module for Tri-Band EGSM DCS PCS / GPRS

CX77304-16 Features

* High efficiency - EGSM 55% - DCS 50% - PCS 45%

* Input/output internally matched to 50 Ω

* Small outline - 9.1 mm × 11.6 mm

* Low profile - 1.5 mm

* Low APC current - 10 µA typical

* Gold plated, lead-free contacts Figure 1. Functional Block Diagram

CX77304-16 General Description

The CX77304-16 Power Amplifier Module (PAM) is designed in a compact form factor for tri-band cellular handsets comprising EGSM900, DCS1800, and PCS1900 operation. It also supports Class 10 General Packet Radio Service (GPRS) multislot operation. The PAM consists of separate Heterojunction Bipolar T.

CX77304-16 Datasheet (1.06 MB)

Preview of CX77304-16 PDF

Datasheet Details

Part number:

CX77304-16

Manufacturer:

Skyworks Solutions

File Size:

1.06 MB

Description:

Pa module for tri-band egsm dcs pcs / gprs.

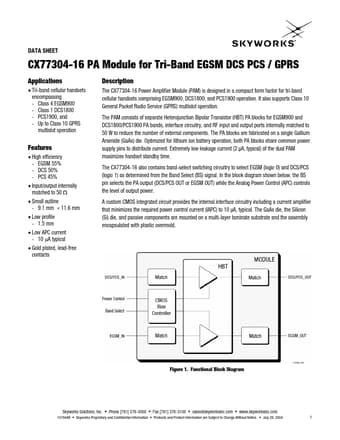

DATA SHEET CX77304-16 PA Module for Tri-Band EGSM DCS PCS / GPRS Applications

* Tri-band cellular handsets encompassing - Class 4 EGSM900 - C.
