PD4W18-59LF

1.71-1.99 GHz Four-Way Power Splitter/Combiner

PD4W18-59LF Features

* Low loss

* High isolation

* Good I/O match

* Excellent phase/amplitude balance

* Low profile MSOP-8 (8-pin, 3 x 3 mm) package (MSL1, 260 °C per JEDEC J-STD-020) Figure 1. PD4W18-59LF Block Diagram Description The PD4W18-59LF is a monolithic, four-way in-pha

PD4W18-59LF General Description

The PD4W18-59LF is a monolithic, four-way in-phase hybrid junction tuned for the 1.71 GHz to 1.99 GHz band. The device offers low loss, high isolation, good input/output matching and exceptional phase/amplitude balance. A functional block diagram is shown in Figure 1. The pin configuration and packa.

PD4W18-59LF Datasheet (553.93 KB)

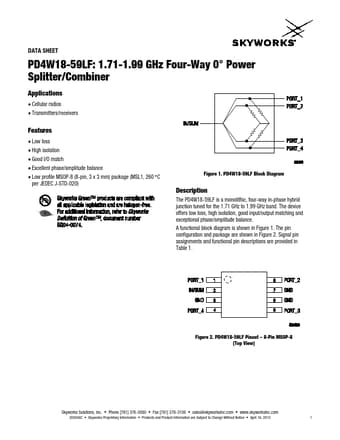

Preview of PD4W18-59LF PDF

Datasheet Details

Part number:

PD4W18-59LF

Manufacturer:

Skyworks Solutions

File Size:

553.93 KB

Description:

1.71-1.99 ghz four-way power splitter/combiner.
DATA SHEET PD4W18-59LF: 1.71-1.99 GHz Four-Way 0° Power Splitter/Combiner Applications

* Cellular radios

* Transmitters/receivers Fe.
