SKY73001 Datasheet PDF - Skyworks Solutions Direct Conversion Mixer Specs

SKY73001 - Direct Conversion Mixer

Datasheet Summary

Description

Skyworks SKY73001 direct conversion mixer is an integrated, high-dynamic range, zero Intermediate Frequency (IF) architecture down-converter for use in wireless communication applications.

Features

High IIP2 and IIP3.
Wideband RF and LO input frequency range (2 to 3500 MHz).
Single +3.0 V supply.
Operating temperature range.
40 °C to +85 °C.
Zero IF architecture eliminates need for image rejection filter.
Differential IF output supports direct interface to A/D circuitry.
AM demodulation immunity.
Low power consumption.
RFLGA™ (32 pin, 5 x 5 mm) Pb-free package (MSL3, 260 °C per JEDEC J-STD-020) GND GN.

Datasheet Details

Part number	SKY73001
Manufacturer	Skyworks Solutions
File Size	485.41 KB
Description	Direct Conversion Mixer
Datasheet	SKY73001 Datasheet
Additional preview pages of the SKY73001 datasheet.

📁 Similar Datasheet

SKY73022-11 - High Gain and Linearity Diversity Downconversion Mixer (Skyworks)

SKY73025 - High Gain and Linearity Diversity Downconversion Mixer (Skyworks)

SKY73032-11 - High Gain and Linearity Single Downconversion Mixer (Skyworks)

SKY73033-11 - High Gain and Linearity Single Downconversion Mixer (Skyworks)

SKY73070 - High Gain and Linearity Single Downconversion Mixer (Skyworks)

SKY73086 - High Gain and Linearity Diversity Downconversion Mixer (Skyworks)

SKY73092-459LF51 - 400-6000 MHz Quadrature Modulator (Skyworks)

SKY73103-11 - High Performance VCO/Synthesizer (Skyworks)

SKY73112-11 - High Performance VCO/Synthesizer (Skyworks)

SKY73120-11 - Voltage Controlled Oscillator (Skyworks)

Full PDF Text Transcription

Click to expand full text

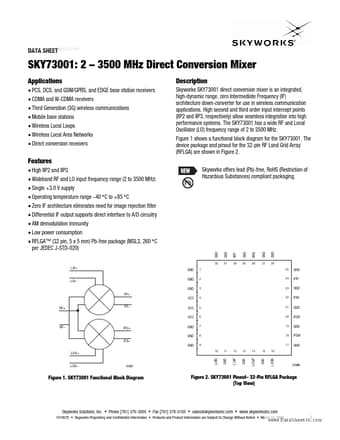

www.DataSheet4U.com DATA SHEET SKY73001: 2 – 3500 MHz Direct Conversion Mixer Applications • PCS, DCS, and GSM/GPRS, and EDGE base station receivers • CDMA and W-CDMA receivers • Third Generation (3G) wireless communications • Mobile base stations • Wireless Local Loops • Wireless Local Area Networks • Direct conversion receivers Description Skyworks SKY73001 direct conversion mixer is an integrated, high-dynamic range, zero Intermediate Frequency (IF) architecture down-converter for use in wireless communication applications. High second and third order input intercept points (IIP2 and IIP3, respectively) allow seamless integration into high performance systems. The SKY73001 has a wide RF and Local Oscillator (LO) frequency range of 2 to 3500 MHz.
