SKY73012 - Direct Quadrature Demodulator

Datasheet Summary

Description

Skyworks SKY73012 is an integrated, broadband, high-dynamic range quadrature demodulator for use in various wireless communication system applications.

The SKY73012 can perform quadrature demodulation of RF input signals from 400 to 3900 MHz directly to baseband frequencies.

Features

  • High IIP2 and IIP3.
  • Wideband RF input frequency range (400 to 3900 MHz).
  • Wideband LO input frequency range (400 to 3900 MHz).
  • Integrated LO balun.
  • Integrated LO amplifier.
  • On-chip I/Q phase splitter.
  • Differential IF output supports direct interface to A/D circuitry.
  • AM demodulation immunity.
  • Single +3.0 V supply.
  • RFLGA™ (32 pin, 5 x 5 mm) Pb-free package (MSL3, 260 °C per JEDEC J-STD-020) GND GND GND G.

📥 Download Datasheet

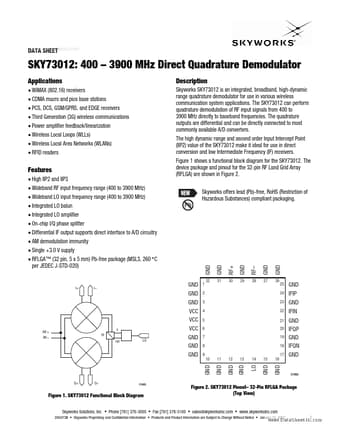

Datasheet preview – SKY73012

Datasheet Details

Part number SKY73012
Manufacturer Skyworks Solutions
File Size 960.76 KB
Description Direct Quadrature Demodulator
Datasheet download datasheet SKY73012 Datasheet
Additional preview pages of the SKY73012 datasheet.

📁 Similar Datasheet

  • SKY73022-11 - High Gain and Linearity Diversity Downconversion Mixer (Skyworks)
  • SKY73025 - High Gain and Linearity Diversity Downconversion Mixer (Skyworks)
  • SKY73032-11 - High Gain and Linearity Single Downconversion Mixer (Skyworks)
  • SKY73033-11 - High Gain and Linearity Single Downconversion Mixer (Skyworks)
  • SKY73070 - High Gain and Linearity Single Downconversion Mixer (Skyworks)
  • SKY73086 - High Gain and Linearity Diversity Downconversion Mixer (Skyworks)
  • SKY73092-459LF51 - 400-6000 MHz Quadrature Modulator (Skyworks)
  • SKY73103-11 - High Performance VCO/Synthesizer (Skyworks)
  • SKY73112-11 - High Performance VCO/Synthesizer (Skyworks)
  • SKY73120-11 - Voltage Controlled Oscillator (Skyworks)
Other Datasheets by Skyworks Solutions
  • SKY73010 - Direct Quadrature Modulator
  • SKY73001 - Direct Conversion Mixer
  • SKY73009 - Direct Quadrature Demodulator
  • SKY73020 - High Gain and Linearity Diversity Downconversion Mixer
  • SKY73021 - High Gain and Linearity Diversity Downconversion Mixer
  • SKY73023 - High Gain and Linearity Diversity Downconversion Mixer
  • SKY73032 - High Gain and Linearity Diversity Downconversion Mixer
  • SKY73033 - High Gain and Linearity Diversity Downconversion Mixer

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com DATA SHEET SKY73012: 400 – 3900 MHz Direct Quadrature Demodulator Applications • WiMAX (802.16) receivers • CDMA macro and pico base stations • PCS, DCS, GSM/GPRS, and EDGE receivers • Third Generation (3G) wireless communications • Power amplifier feedback/linearization • Wireless Local Loops (WLLs) • Wireless Local Area Networks (WLANs) • RFID readers Description Skyworks SKY73012 is an integrated, broadband, high-dynamic range quadrature demodulator for use in various wireless communication system applications. The SKY73012 can perform quadrature demodulation of RF input signals from 400 to 3900 MHz directly to baseband frequencies. The quadrature outputs are differential and can be directly connected to most commonly available A/D converters.
