SKY73023 - High Gain and Linearity Diversity Downconversion Mixer

Datasheet Summary

Description

The SKY73023 is a fully integrated diversity mixer that includes Local Oscillator (LO) drivers, an LO switch, high linearity mixers, and large dynamic range Intermediate Frequency (IF) amplifiers.

Low loss RF baluns have also been included to reduce design complications and lower system cost.

Features

  • an input IP3 of 25.5 dBm and a Noise Figure (NF) of 9.5 dB, making the device an ideal solution for high dynamic range systems such as 2G/3G base station receivers. The LO switch provides more than 45 dB of isolation between LO inputs and supports the switching time required for GSM/EDGE base stations. The SKY73023 is manufactured using a robust silicon BiCMOS process and has been designed for optimum long-term reliability. The SKY73023 diversity downconversion mixer is provided in a compact, 36.

📥 Download Datasheet

Datasheet preview – SKY73023

Datasheet Details

Part number SKY73023
Manufacturer Skyworks Solutions
File Size 318.99 KB
Description High Gain and Linearity Diversity Downconversion Mixer
Datasheet download datasheet SKY73023 Datasheet
Additional preview pages of the SKY73023 datasheet.

📁 Similar Datasheet

  • SKY73022-11 - High Gain and Linearity Diversity Downconversion Mixer (Skyworks)
  • SKY73025 - High Gain and Linearity Diversity Downconversion Mixer (Skyworks)
  • SKY73032-11 - High Gain and Linearity Single Downconversion Mixer (Skyworks)
  • SKY73033-11 - High Gain and Linearity Single Downconversion Mixer (Skyworks)
  • SKY73070 - High Gain and Linearity Single Downconversion Mixer (Skyworks)
  • SKY73086 - High Gain and Linearity Diversity Downconversion Mixer (Skyworks)
  • SKY73092-459LF51 - 400-6000 MHz Quadrature Modulator (Skyworks)
  • SKY73103-11 - High Performance VCO/Synthesizer (Skyworks)
  • SKY73112-11 - High Performance VCO/Synthesizer (Skyworks)
  • SKY73120-11 - Voltage Controlled Oscillator (Skyworks)
Other Datasheets by Skyworks Solutions
  • SKY73020 - High Gain and Linearity Diversity Downconversion Mixer
  • SKY73021 - High Gain and Linearity Diversity Downconversion Mixer
  • SKY73001 - Direct Conversion Mixer
  • SKY73009 - Direct Quadrature Demodulator
  • SKY73010 - Direct Quadrature Modulator
  • SKY73012 - Direct Quadrature Demodulator
  • SKY73032 - High Gain and Linearity Diversity Downconversion Mixer
  • SKY73033 - High Gain and Linearity Diversity Downconversion Mixer

Full PDF Text Transcription

Click to expand full text

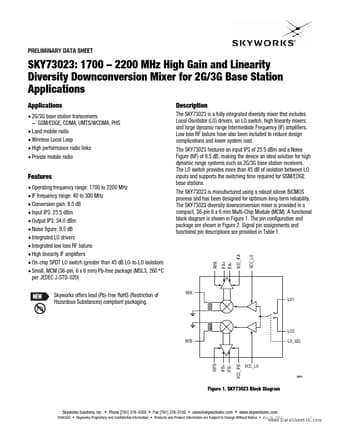

www.DataSheet4U.com PRELIMINARY DATA SHEET SKY73023: 1700 – 2200 MHz High Gain and Linearity Diversity Downconversion Mixer for 2G/3G Base Station Applications Applications • 2G/3G base station transceivers: − GSM/EDGE, CDMA, UMTS/WCDMA, PHS • Land mobile radio • Wireless Local Loop • High performance radio links • Private mobile radio Description The SKY73023 is a fully integrated diversity mixer that includes Local Oscillator (LO) drivers, an LO switch, high linearity mixers, and large dynamic range Intermediate Frequency (IF) amplifiers. Low loss RF baluns have also been included to reduce design complications and lower system cost. The SKY73023 features an input IP3 of 25.5 dBm and a Noise Figure (NF) of 9.
