SKY73032 - High Gain and Linearity Diversity Downconversion Mixer

Datasheet Summary

Description

The SKY73032 is a fully integrated single mixer that includes Local Oscillator (LO) drivers, an LO switch, high linearity mixers, and large dynamic range Intermediate Frequency (IF) amplifiers.

Low loss RF baluns have also been included to reduce design complications and lower system cost.

Features

  • an input IP3 of 26.5 dBm and a Noise Figure (NF) of 9.1 dB, making the device an ideal solution for high dynamic range systems such as 2G/3G base station receivers. The LO switch provides more than 40 dB of isolation between LO inputs and supports the switching time required for GSM/EDGE base stations. The SKY73032 is manufactured using a robust silicon BiCMOS process and has been designed for optimum long-term reliability. The SKY73032 single downconversion mixer is provided in a compact, 20-pi.

📥 Download Datasheet

Datasheet preview – SKY73032

Datasheet Details

Part number SKY73032
Manufacturer Skyworks Solutions
File Size 485.65 KB
Description High Gain and Linearity Diversity Downconversion Mixer
Datasheet download datasheet SKY73032 Datasheet
Additional preview pages of the SKY73032 datasheet.

📁 Similar Datasheet

  • SKY73032-11 - High Gain and Linearity Single Downconversion Mixer (Skyworks)
  • SKY73033-11 - High Gain and Linearity Single Downconversion Mixer (Skyworks)
  • SKY73022-11 - High Gain and Linearity Diversity Downconversion Mixer (Skyworks)
  • SKY73025 - High Gain and Linearity Diversity Downconversion Mixer (Skyworks)
  • SKY73070 - High Gain and Linearity Single Downconversion Mixer (Skyworks)
  • SKY73086 - High Gain and Linearity Diversity Downconversion Mixer (Skyworks)
  • SKY73092-459LF51 - 400-6000 MHz Quadrature Modulator (Skyworks)
  • SKY73103-11 - High Performance VCO/Synthesizer (Skyworks)
  • SKY73112-11 - High Performance VCO/Synthesizer (Skyworks)
  • SKY73120-11 - Voltage Controlled Oscillator (Skyworks)
Other Datasheets by Skyworks Solutions
  • SKY73033 - High Gain and Linearity Diversity Downconversion Mixer
  • SKY73035 - High Gain and Linearity Diversity Downconversion Mixer
  • SKY73001 - Direct Conversion Mixer
  • SKY73009 - Direct Quadrature Demodulator
  • SKY73010 - Direct Quadrature Modulator
  • SKY73012 - Direct Quadrature Demodulator
  • SKY73020 - High Gain and Linearity Diversity Downconversion Mixer
  • SKY73021 - High Gain and Linearity Diversity Downconversion Mixer

Full PDF Text Transcription

Click to expand full text

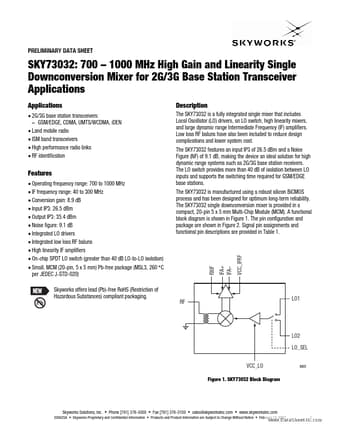

www.DataSheet4U.com PRELIMINARY DATA SHEET SKY73032: 700 – 1000 MHz High Gain and Linearity Single Downconversion Mixer for 2G/3G Base Station Transceiver Applications Applications • 2G/3G base station transceivers: − GSM/EDGE, CDMA, UMTS/WCDMA, iDEN • Land mobile radio • ISM band transceivers • High performance radio links • RF identification Description The SKY73032 is a fully integrated single mixer that includes Local Oscillator (LO) drivers, an LO switch, high linearity mixers, and large dynamic range Intermediate Frequency (IF) amplifiers. Low loss RF baluns have also been included to reduce design complications and lower system cost. The SKY73032 features an input IP3 of 26.5 dBm and a Noise Figure (NF) of 9.
