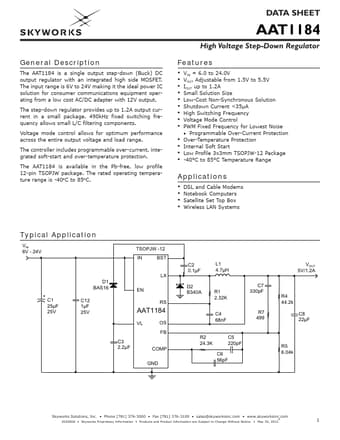

AAT1184 Datasheet, Regulator, Skyworks

AAT1184 Features

• Regulator
• VIN = 6.0 to 24.0V
• VOUT Adjustable from 1.5V to 5.5V
• IOUT up to 1.2A
• Small Solution Size
• Low-Cost Non-Synchronous Solution
• Sh

PDF File Details

Part number:

AAT1184

Manufacturer:

Skyworks

File Size:

1.84MB

Download:

📄 Datasheet

Description:

High voltage step-down regulator. The AAT1184 is a single output step-down (Buck) DC output regulator with an integrated high side MOSFET. The input range is 6V to 24V
