AAT1185 - High Voltage Step-Down Controller

AAT1185 Description

General .
The AAT1185 is a single output step-down (Buck) regulator controller with an input range of 6V to 24V.

AAT1185 Features

*  VIN = 6.0V to 24.0V
*  VOUT Adjustable from 0.8V to 5.5V
*  IOUT from

AAT1185 Applications

* DSL and Cable Modems
* Notebook Computers
* Satellite Set Top Boxes
* Wireless LAN Systems Typical Application VIN 6V - 24V C7 2.2μF D1 BAS16 C3 470μF 25V C5 10μF 25V U1 BST VCC DH AAT1185 HV LX EN DL RS R1 3.32 R2 3.32 C8 0.1μF Q1 Q2 PGND OS COMP FB

📥 Download Datasheet

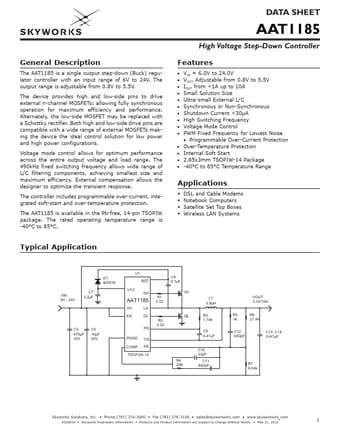

Preview of AAT1185 PDF
