AAT1189 Datasheet - Skyworks

AAT1189 High Voltage Step-Down Regulator

The AAT1189 is a single output step-down (Buck) DC output regulator with an integrated high side MOSFET. The input range is 6V to 24V making it the ideal power IC solution for consumer communications equipment operating from a low cost AC/DC adapter with 12V output. The step-down regulator provides .

AAT1189 Features

* VIN = 6.0 to 24.0V

* VOUT Adjustable from 1.5V to 5.5V

* IOUT up to 2.5A

* Small Solution Size

* Low-Cost Non-Synchronous Solution

* Shutdown C

AAT1189-Skyworks.pdf

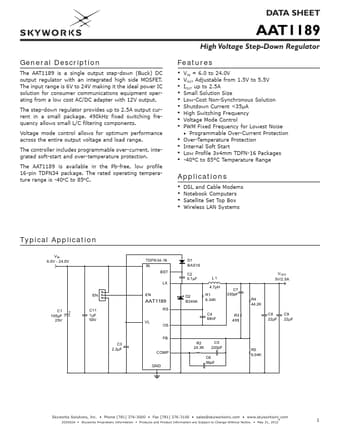

Preview of AAT1189 PDF
AAT1189 Datasheet Preview Page 2 AAT1189 Datasheet Preview Page 3

Datasheet Details

Part number:

AAT1189

Manufacturer:

Skyworks

File Size:

1.95 MB

Description:

High voltage step-down regulator.
