AAT1184 Datasheet - AAT

AAT1184 High Voltage Step-Down Regulator

The AAT1184 is a single output step-down (Buck) DC output regulator with an integrated high side MOSFET. The input range is 6V to 24V making it the ideal power IC solution for consumer communications equipment operating from a low cost AC/DC adapter with 12V output. The step-down regulator provides .

AAT1184 Features

* VIN = 6.0 to 24.0V

* VOUT Adjustable from 1.5V to 5.5V

* IOUT up to 1.2A

* Small Solution Size

* Low-Cost Non-Synchronous Soluti

AAT1184-AAT.pdf

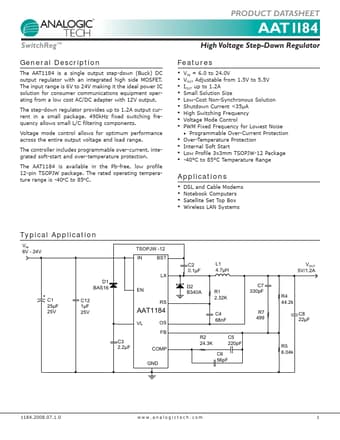

Preview of AAT1184 PDF
AAT1184 Datasheet Preview Page 2 AAT1184 Datasheet Preview Page 3

Datasheet Details

Part number:

AAT1184

Manufacturer:

AAT

File Size:

1.97 MB

Description:

High voltage step-down regulator.
