AAT3171 Datasheet, Pump, Skyworks

AAT3171 Features

  • Pump
  • Up to 800mA Output Current
  • Tri-Mode 1X/1.5X/2X in Current Mode
  • 16 Current Level Steps Set by S2Cwire
  • External RSET to Set Maximum Current

PDF File Details

Part number:

AAT3171

Manufacturer:

Skyworks

File Size:

1.04MB

Download:

📄 Datasheet

Description:

High efficiency charge pump. The AAT3171 is a high output current, high efficiency, low noise, low profile charge pump DC/DC converter. The device is ideal for mu

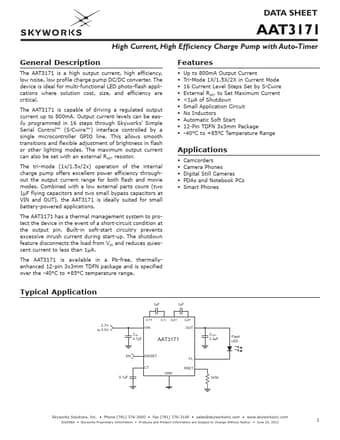

Datasheet Preview: AAT3171 📥 Download PDF (1.04MB)
Page 2 of AAT3171 Page 3 of AAT3171

AAT3171 Application

  • Applications where solution cost, size, and efficiency are critical. The AAT3171 is capable of driving a regulated output current up to 800mA. Outpu
