AAT3172 - High Current LED Flash Driver Charge Pump

Skyworks

The AAT3172 by Skyworks is a High Current LED Flash Driver Charge Pump. Below is the official datasheet preview.

📥 Download Datasheet

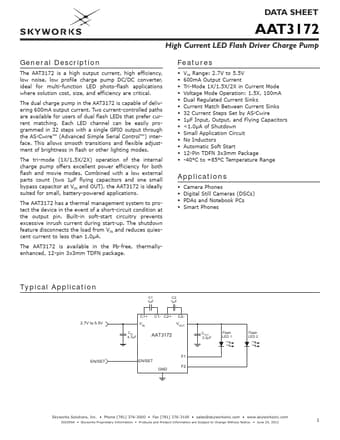

AAT3172 High Current LED Flash Driver Charge Pump by Skyworks - Datasheet Preview — Official preview page of the **AAT3172** High Current LED Flash Driver Charge Pump datasheet (Skyworks).

Datasheet Details

Part number	AAT3172
Manufacturer	Skyworks
File Size	947.58 KB
Description	High Current LED Flash Driver Charge Pump
Datasheet	AAT3172-Skyworks.pdf
Additional preview pages of the AAT3172 datasheet.

AAT3172 Product details

Description

The AAT3172 is a high output current, high efficiency, low noise, low profile charge pump DC/DC converter, ideal for multi-function LED photo-flash applications where solution cost, size, and efficiency are critical.

Features

VIN Range: 2.7V to 5.5V.
600mA Output Current.
Tri-Mode 1X/1.5X/2X in Current Mode.
Voltage Mode Operation: 1.5X, 100mA.
Dual Regulated Current Sinks.
Current Match Between Current Sinks.
32 Current Steps Set by AS2Cwire.
1μF Input, Output, and Flying Capacitors.
