AAT5102 - 2.5W/Ch Stereo Class D Audio Power Amplifier

AAT5102 Description

DATA SHEET AAT5102 2.5W/Ch Stereo Class D Audio Power Amplifier General .
The AAT5102 is a high efficiency, high performance stereo class D audio amplifier.

AAT5102 Features

*  Wide Supply Voltage Range (2.5V to 5.5V)
*  Maximum Battery Life and Minimum Heat ▪ 5mA Quiescent Current at 3.6V VDD ▪

AAT5102 Applications

* The AAT5102 has four adjustable amplifier gains with 6, 12, 18 and 24dB programmed by two external pins. Two shutdown control pins are employed to control the left and right channels independently. The AAT5102 also integrates over-temperature protection circuitry to prevent internal junction temper

📥 Download Datasheet

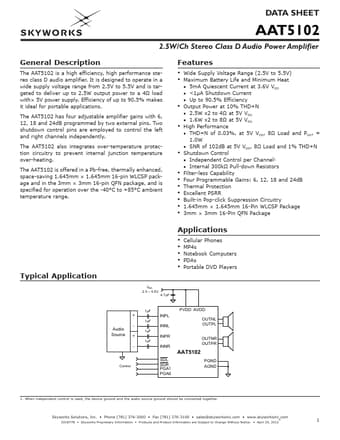

Preview of AAT5102 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AAT5102
Manufacturer
Skyworks
File Size
1.54 MB
Datasheet
AAT5102-Skyworks.pdf
Description
2.5W/Ch Stereo Class D Audio Power Amplifier
